      • Turbo Levo 4, Where Super Meets Natural

      SuperNatural Power, Ride, and Range

      The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're...

      ×

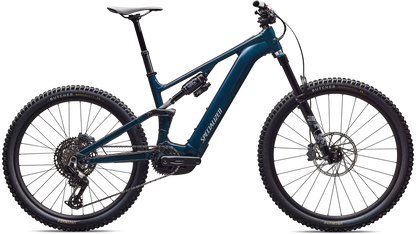

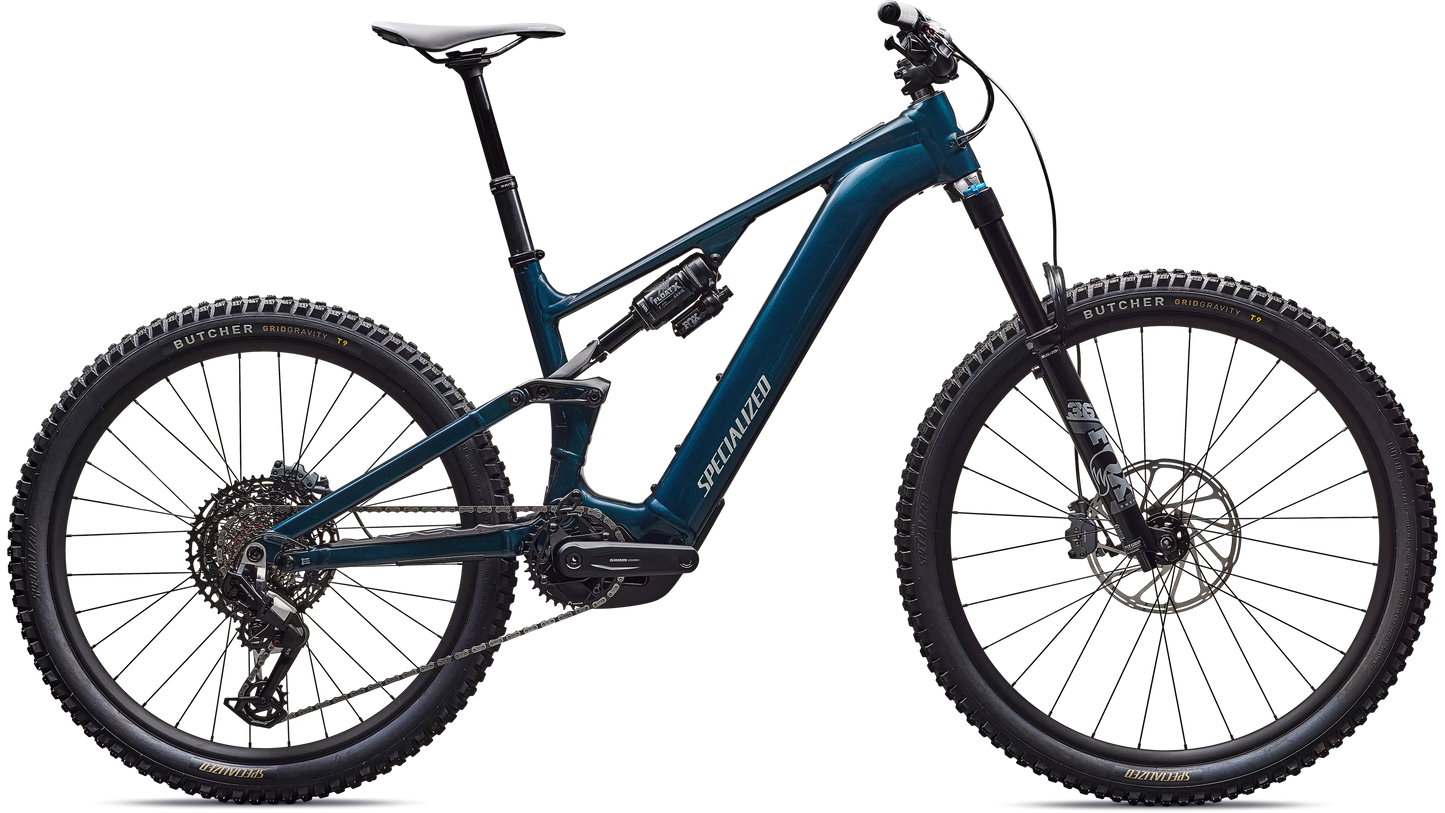

      Turbo Levo 4 Comp Alloy

      Turbo Levo 4, Where Super Meets Natural

      SuperNatural Power, Ride, and Range

      The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

    1 1

SPECIALIZED

Turbo Levo 4 Comp Alloy

SKU:

R 135,000.00
R 135,000.00
Sale Sold out
Tax included.
Size
×

Turbo Levo 4 Comp Alloy

SKU Size Color STOCK (All Locations)
95226-5002 S2 Gloss Deep Lake Metallic / Dune White Sold Out (0 total)
95226-5003 S3 Gloss Deep Lake Metallic / Dune White 5+ (10 total)
95226-5004 S4 Gloss Deep Lake Metallic / Dune White 5+ (5 total)
95226-5005 S5 Gloss Deep Lake Metallic / Dune White 2 (all locations)
95226-5006 S6 Gloss Deep Lake Metallic / Dune White 2 (all locations)
95226-5101 S1 Satin Dusky Pink / Cypress Metallic Sold Out (0 total)
95226-5102 S2 Satin Dusky Pink / Cypress Metallic 1 (all locations)
95226-5103 S3 Satin Dusky Pink / Cypress Metallic 4 (all locations)
95226-5104 S4 Satin Dusky Pink / Cypress Metallic 3 (all locations)
95226-5105 S5 Satin Dusky Pink / Cypress Metallic 1 (all locations)
95226-5201 S1 Satin Gunmetal / Obsidian Sold Out (0 total)
95226-5202 S2 Satin Gunmetal / Obsidian Sold Out (0 total)
95226-5203 S3 Satin Gunmetal / Obsidian 5+ (11 total)
95226-5204 S4 Satin Gunmetal / Obsidian 1 (all locations)
95226-5205 S5 Satin Gunmetal / Obsidian 5+ (8 total)
95226-5206 S6 Satin Gunmetal / Obsidian 2 (all locations)
Color
Gloss Deep Lake Metallic / Dune White
Satin Dusky Pink / Cypress Metallic
Satin Gunmetal / Obsidian

5+ left in stock
View full details

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're...

×

Turbo Levo 4 Comp Alloy

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

TECHNICAL SPECIFICATIONS

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

BRAKES

Rear Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Front Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

COCKPIT

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

Grips

Specialized Trail Grips

Stem

Alloy Trail Stem, 35mm bar bore

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

WHEELS

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Rear Wheel

Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Wheel

Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta valve

E-BIKE

Wiring Harness

-

Charger

Specialized 4amp charger

Motor

All New Specialized 3.1 Motor, 101Nm torque, 666Nm power

Battery

840Wh battery

UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

SUSPENSION

Fork

FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle

Rear Shock

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm

DRIVETRAIN

Crankset

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Shift Levers

SRAM 90 trigger, 12-speed, single click

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Rear Derailleur

SRAM Eagle 90 T-Type

Chain

SRAM GX Eagle T-Type Flattop Chain, 12-speed

Cassette

SRAM XS-1275, 12-speed, 10-52t

ACCESSORIES

SWAT

SWAT internal downtube storage

Pedals

-

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY


  • S1
  • S2
  • S3
  • S4
  • S5
  • S6
  • S6
    •

S2S3S4S5S6
Crank Length 155mm 155mm 155mm 155mm 155mm
Handlebar Width 800mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 160mm 185mm 213mm 213mm
Stack 618mm 626mm 638mm 652mm 667mm
Reach 435mm 455mm 480mm 505mm 535mm
Headtube Length 95mm 103mm 117mm 132mm 149mm
Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
BB Height 350mm 350mm 350mm 350mm 350mm
BB Drop 29.5mm 29.5mm 29.5mm 29.5mm 29.5mm
Trail 132mm 132mm 132mm 132mm 132mm
Fork Length (full) 577mm 577mm 577mm 577mm 577mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 765mm 789mm 820mm 851mm 888mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1200mm 1223mm 1254mm 1286mm 1323mm
Top-tube Length (horizontal) 578mm 599mm 627mm 655mm 689mm
Bike Standover Height 753mm 754mm 753mm 758mm 761mm
Seat Tube Length 390mm 405mm 425mm 445mm 465mm
Seat Tube Angle 77° 77° 77° 77° 77°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 274mm 289mm 313mm 337mm 357mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm

SIZE CHART
