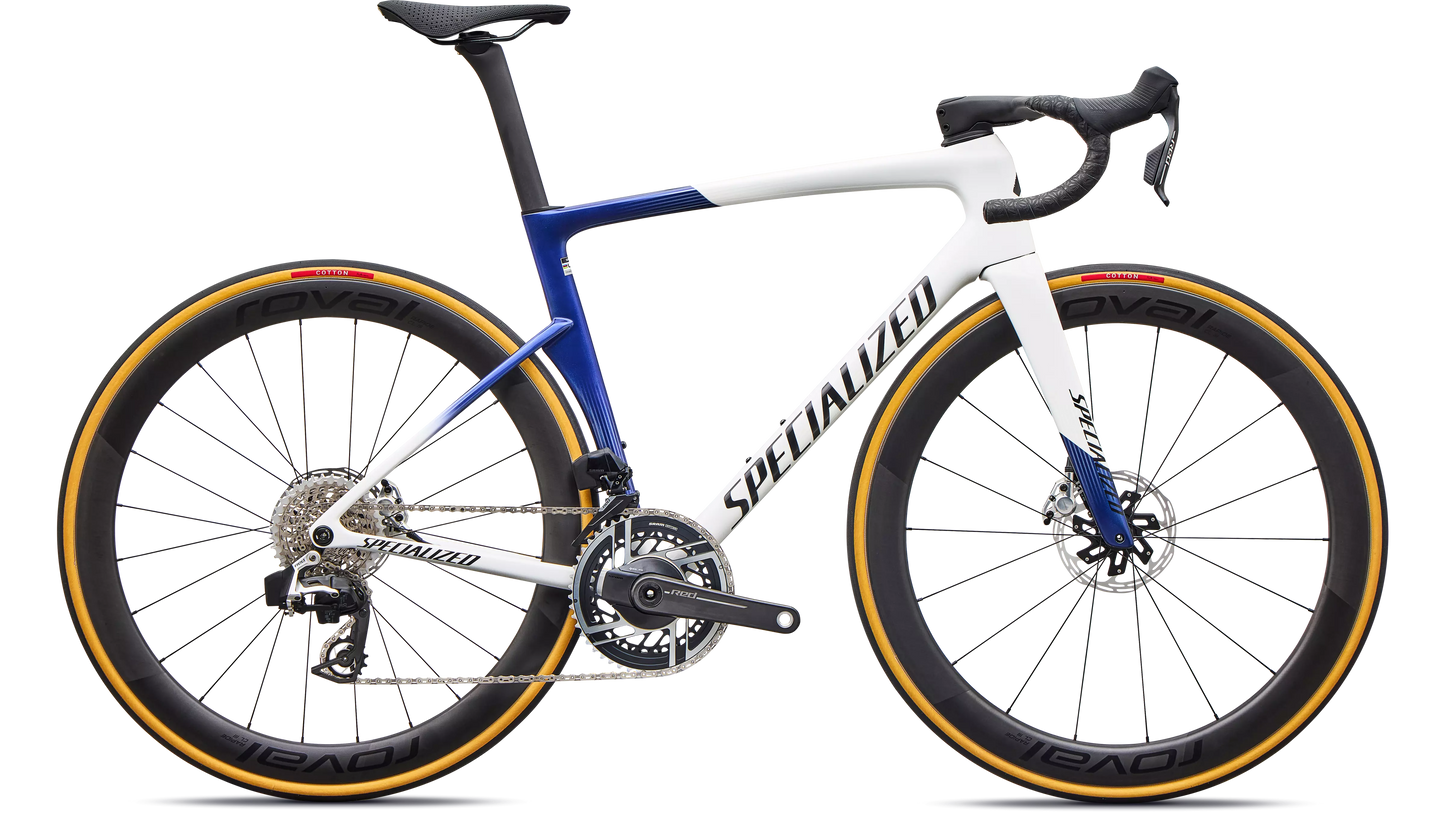

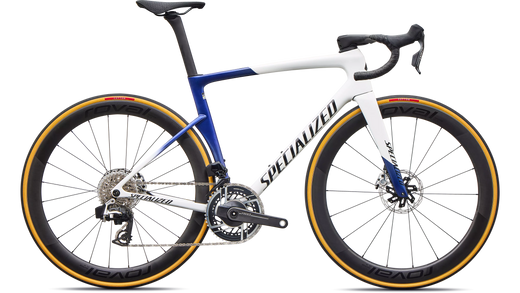

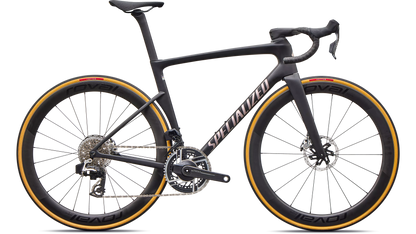

Tarmac SL9 S-Level
One Bike To Rule Them All
The Tarmac SL9 S-Level was born from the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
SPECIALIZED
Tarmac SL9 S-Level
SRAM RED AXS
SKU:
Share
Please find me:
Tarmac SL9 S-Level
Couldn't load pickup availability
Tarmac SL9 S-Level
One Bike To Rule Them All
The Tarmac SL9 S-Level was born from the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
Collapsible content
TECHNICAL SPECIFICATIONS
FRAMESET
Frame
Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
SUSPENSION
Fork
FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
COCKPIT
Handlebars
Roval Rapide Cockpit, Integrated Bar/Stem
Stem
#N/ATape
Supacaz Super Sticky Kush
Saddle
Power Pro Mirror, hollow Ti rails
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
BRAKES
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
DRIVETRAIN
Shift Levers
SRAM RED AXS E1, hydraulic disc
Front Derailleur
SRAM RED AXS E1, braze-on
Rear Derailleur
SRAM RED AXS E1, 12-speed
Cassette
SRAM RED XG-1290 E1, 12-speed, 10-36t
Crankset
SRAM RED AXS E1 with Quarq Power Meter, 50/37t
Chainrings
#N/ABottom Bracket
SRAM DUB BSA 68
Chain
SRAM RED E1, Flattop
WHEELS & TIRES
Front Wheel
Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, DT350 hub, 18h, DT Swiss Competition Race Straight Pull Spokes
Rear Wheel
Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, DT350 hub, 24h, DT Swiss Competition Race Straight Pull Spokes
Front Tire
Cotton TLR, 700x30
Rear Tire
Cotton TLR, 700x30
Inner Tubes
700x24-34, 80mm presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm |
| Handlebar Width | 380mm | 380mm | 400mm | 420mm | 400mm | 420mm | 420mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
| Frame Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
| Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
| Head Tube Length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
| Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm |
| Front Center | 567mm | 570mm | 572mm | 582mm | 587mm | 602mm | 609mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 970mm | 973mm | 975mm | 986mm | 991mm | 1006mm | 1013mm |
| Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 540mm | 563mm | 577mm | 595mm |
| Bike Standover Height | 722mm | 734mm | 745mm | 767mm | 785mm | 807mm | 833mm |
| Seat Tube Length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
| Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
