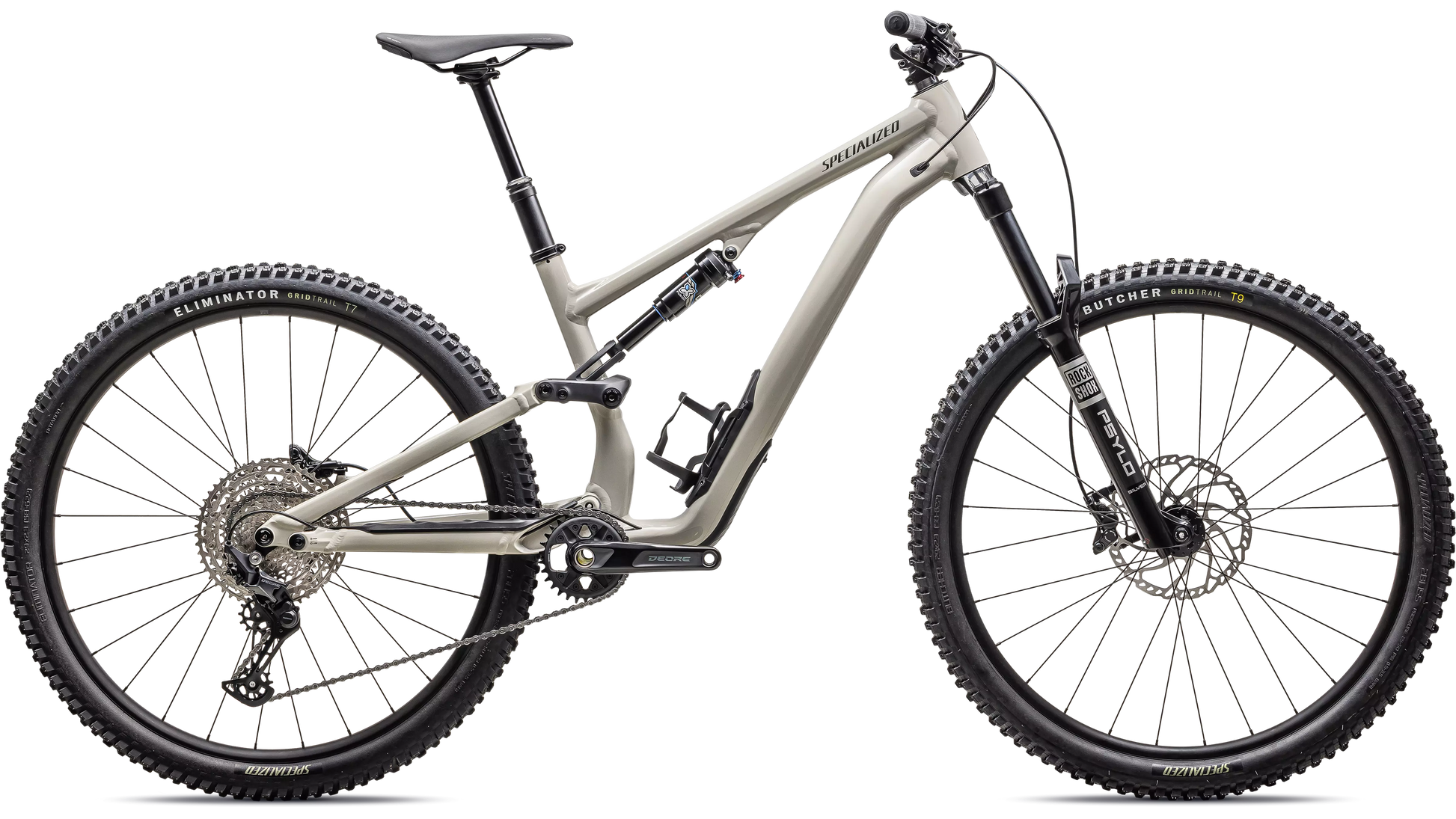

Stumpjumper 15 Alloy

SKU:

Regular price R 49,000.00
Regular price R 59,000.00 Sale price R 49,000.00
Sale Sold out
Tax included.
Size
×

Stumpjumper 15 Alloy

SKU Size Color STOCK (All Locations)
93325-7603 S3 Gloss White Mountains / Dark Moss Green 1 (all locations)
93325-7604 S4 Gloss White Mountains / Dark Moss Green 2 (all locations)
93325-7605 S5 Gloss White Mountains / Dark Moss Green 1 (all locations)
Color

Only 1 left in stock!

View full details

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make...

×

Stumpjumper 15 Alloy

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?  Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 Alloy balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15 Alloy, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style and any terrain. The head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the M5 Alloy chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT on Stumpjumper 15 elevates downtube storage, an innovation we pioneered.

MORE RELENTLESS THAN YOU: Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and programs to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way we've got you covered.

  • All-new M5 alloy frame with SWAT door integration

  • Ride Dynamics tuned X-Fusion 02 Pro RL shock with adjustable rebound and lockout

  • RockShox Psylo Silver fork with Motion Control Damper

  • Reliable Shimano MT-420 4-piston brakes

  • 12-speed Shimano Deore drivetrain

  • Lifetime replacement of suspension pivot bearings to the original owner

Collapsible content

TECHNICAL SPECIFICATIONS

DRIVETRAIN

Chainrings

-

Bottom Bracket

-

Shift Levers

Shimano Deore, M6100, 12spd

Chain

Shimano Deore, M6100, 12-speed

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Crankset

Shimano Deore, M6120, 30T ring, 55mm chainline, S1-S3:165mm, S4-S6: 170mm

Cassette

Shimano Deore, M6100, 12spd w/Hyperglide+, 10-51t

COCKPIT

Saddle

Bridge, Steel rails, S1-S2: 155mm, S3-S6: 143mm

SeatPost

TranzX Dropper, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm

Handlebars

Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise

Grips

Specialized Trail Grips

Stem

Alloy Trail Stem, 35mm bar bore

WHEELS

Spokes

Stainless, 14g

Rims

Specialized Alloy, Tubeless Ready, 29mm internal width, 28h, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"

Inner Tubes

Standard, Presta valve

SUSPENSION

Rear Shock

X-Fusion 02 Pro RL, Ride Dynamics Trail Tune, rebound adjust, lockout S1:210x52.5mm, S2-S6:210x55mm

Fork

RockShox, Psylo Silver, Motion Control Damper, 15x110 axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel

FRAMESET

Frame

M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder

Alloy, 38.6mm

BRAKES

Front Brake

Shimano, BR-MT420, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

Shimano, BR-MT420, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 203mm

ACCESSORIES

SWAT

SWAT internal downtube storage

WEIGHT

Weight

16.57 kg (36 lb, 8.5 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY

S1 S2 S3 S4 S5 S6
Crank Length 165mm 170mm 170mm 170mm 170mm 175mm
Stem Length 40mm 40mm 50mm 50mm 50mm 50mm
Handlebar Width 780mm 780mm 780mm 780mm 780mm 780mm
Seatpost Length 120mm 150mm 150mm 180mm 210mm 210mm
Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
Stack (Low BB) 614mm 613mm 622mm 632mm 641mm 650mm
Stack (High BB) 610mm 609mm 618mm 627mm 636mm 646mm
Reach (Low BB) 410mm 430mm 450mm 475mm 500mm 530mm
Reach (High BB) 415mm 435mm 455mm 480mm 505mm 535mm
Headtube Length 95mm 100mm 110mm 120mm 130mm 140mm
Headtube Angle (Low BB) 65° 65° 65° 65° 65° 65°
Headtube Angle (High BB) 65.5° 65.5° 65.5° 65.5° 65.5° 65.5°
BB Height (Low BB) 328mm 333mm 333mm 333mm 333mm 333mm
BB Height (High BB) 335mm 340mm 340mm 340mm 340mm 340mm
BB Drop (Low BB) 47mm 42mm 42mm 42mm 42mm 42mm
BB Drop (High BB) 40mm 35mm 35mm 35mm 35mm 35mm
Trail (Low BB) 126mm 126mm 126mm 126mm 126mm 126mm
Trail (High BB) 123mm 123mm 123mm 123mm 123mm 123mm
Fork Length (full) 550mm 550mm 550mm 550mm 550mm 550mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Front Center 724mm 746mm 770mm 800mm 829mm 863mm
Chainstay Length 432mm 432mm 432mm 432mm 442mm 442mm
Wheelbase 1152mm 1175mm 1200mm 1228mm 1268mm 1302mm
Top-tube Length (horizontal) 563mm 583mm 605mm 632mm 660mm 692mm
Bike Standover Height 730mm 734mm 744mm 749mm 757mm 757mm
Seat Tube Length 385mm 385mm 405mm 425mm 445mm 465mm
Seat Tube Angle (Low BB) 76° 76° 76° 76° 76° 76°
Seat Tube Angle (High BB) 76.5° 76.5° 76.5° 76.5° 76.5° 76.5°
Max Seatpost Insertion 220mm 220mm 240mm 260mm 280mm 300mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm 80mm
