      • S-Works Crux 5

      Eat My Dust

      The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it...

      ×

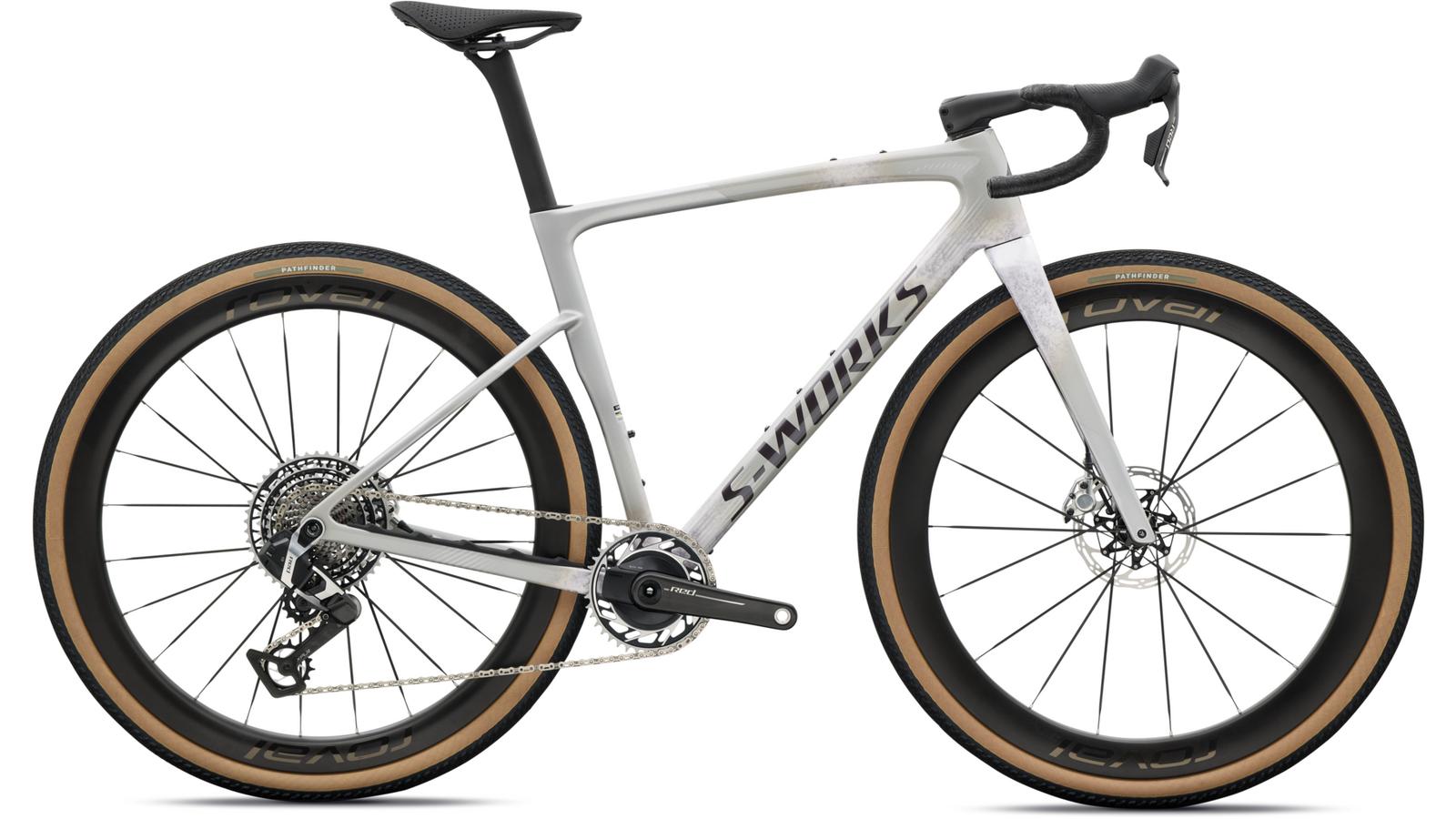

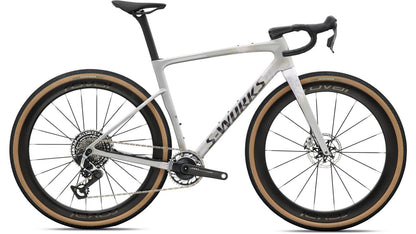

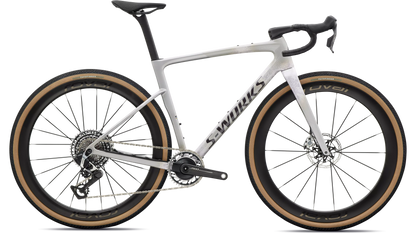

      S-Works Crux 5

      S-Works Crux 5

      Eat My Dust

      The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

    1 1

SPECIALIZED

S-Works Crux 5

SRAM RED XPLR

SKU:

R 280,000.00
R 280,000.00
Sale Sold out
Tax included.
Size
×

S-Works Crux 5

SKU Size Color STOCK (All Locations)
91427-0149 49 Silver Dust Frost Sold Out (0 total)
91427-0152 52 Silver Dust Frost 5+ (5 total)
91427-0154 54 Silver Dust Frost Sold Out (0 total)
91427-0156 56 Silver Dust Frost Sold Out (0 total)
91427-0158 58 Silver Dust Frost Sold Out (0 total)
91427-0161 61 Silver Dust Frost Sold Out (0 total)
Color
Silver Dust Frost

5+ left in stock
View full details

S-Works Crux 5

Eat My Dust

The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it...

×

S-Works Crux 5

S-Works Crux 5

Eat My Dust

The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

TECHNICAL SPECIFICATIONS

FRAMESET

Frame

S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

SUSPENSION

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

COCKPIT

Handlebars

Roval Terra Cockpit, Integrated Bar/Stem

Stem

#N/A

Tape

Supacaz Super Sticky Kush

Saddle

S-Works Power with Mirror

SeatPost

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp

Seat Binder

Integrated Wedge

BRAKES

Front Brake

SRAM RED E1, hydraulic disc

Rear Brake

SRAM RED E1, hydraulic disc

DRIVETRAIN

Shift Levers

SRAM RED AXS E1, hydraulic disc

Front Derailleur

-

Rear Derailleur

SRAM RED AXS XPLR E1, 13-speed

Cassette

SRAM RED XPLR E1, 13-speed, 10-46t

Crankset

SRAM RED XPLR E1, Quarq power meter, 40t

Chainrings

#N/A

Bottom Bracket

Ceramic Speed BB Alpha, BSA DUB

Chain

SRAM RED E1

WHEELS & TIRES

Front Wheel

Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces

Rear Wheel

Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces

Front Tire

Pathfinder 700x45, Tubeless Ready

Rear Tire

Pathfinder 700x45, Tubeless Ready

Inner Tubes

700x32-50mm, 60mm Presta valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY

49 52 54 56 58 61
Crank Length 165mm 165mm 170mm 170mm 172.5mm 172.5mm
Stem Length 70mm 80mm 80mm 100mm 100mm 100mm
Handlebar Width 380mm 380mm 400mm 400mm 420mm 420mm
Seatpost Length 300mm 300mm 380mm 380mm 380mm 380mm
Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
Stack 530mm 547mm 560mm 578mm 598mm 621mm
Reach 375mm 382mm 388mm 400mm 412mm 425mm
Head Tube Length 95mm 110mm 125mm 142mm 163mm 188mm
Head Tube Angle 70.5° 70.75° 71° 71.5° 71.5° 71.5°
BB Height 278mm 278mm 280mm 280mm 280mm 280mm
BB Drop 80mm 80mm 78mm 78mm 78mm 78mm
Trail 72mm 71mm 69mm 66mm 66mm 66mm
Fork Length, Full 401mm 401mm 401mm 401mm 401mm 401mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm 51mm
Front Center 594mm 604mm 613mm 626mm 644mm 665mm
Chainstay Length 425mm 425mm 425mm 425mm 425mm 425mm
Wheelbase 1008mm 1016mm 1026mm 1039mm 1057mm 1078mm
Top Tube Length, Horizontal 512mm 534mm 543mm 566mm 583mm 603mm
Bike Standover Height 753mm 766mm 781mm 803mm 823mm 849mm
Seat Tube Length 445mm 456mm 473mm 497mm 515mm 545mm
Seat Tube Angle 75.5° 74.5° 74.5° 74° 74° 74°
