      • 101Nm Torque, 666W Power, 840Wh Battery

      Turbo Levo 4, Where Super Meets Natural

      SuperNatural Power, Ride, and Range

      The Specialized Science Club Introduces the Levo 4, an electric mountain bike so...

      ×

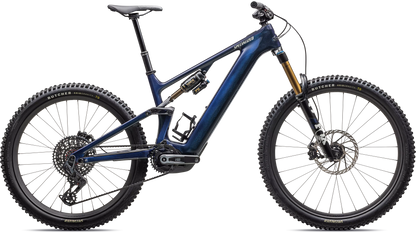

      Turbo Levo 4 Pro

      101Nm Torque, 666W Power, 840Wh Battery

      Turbo Levo 4, Where Super Meets Natural

      SuperNatural Power, Ride, and Range

      The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

    1 1

SPECIALIZED

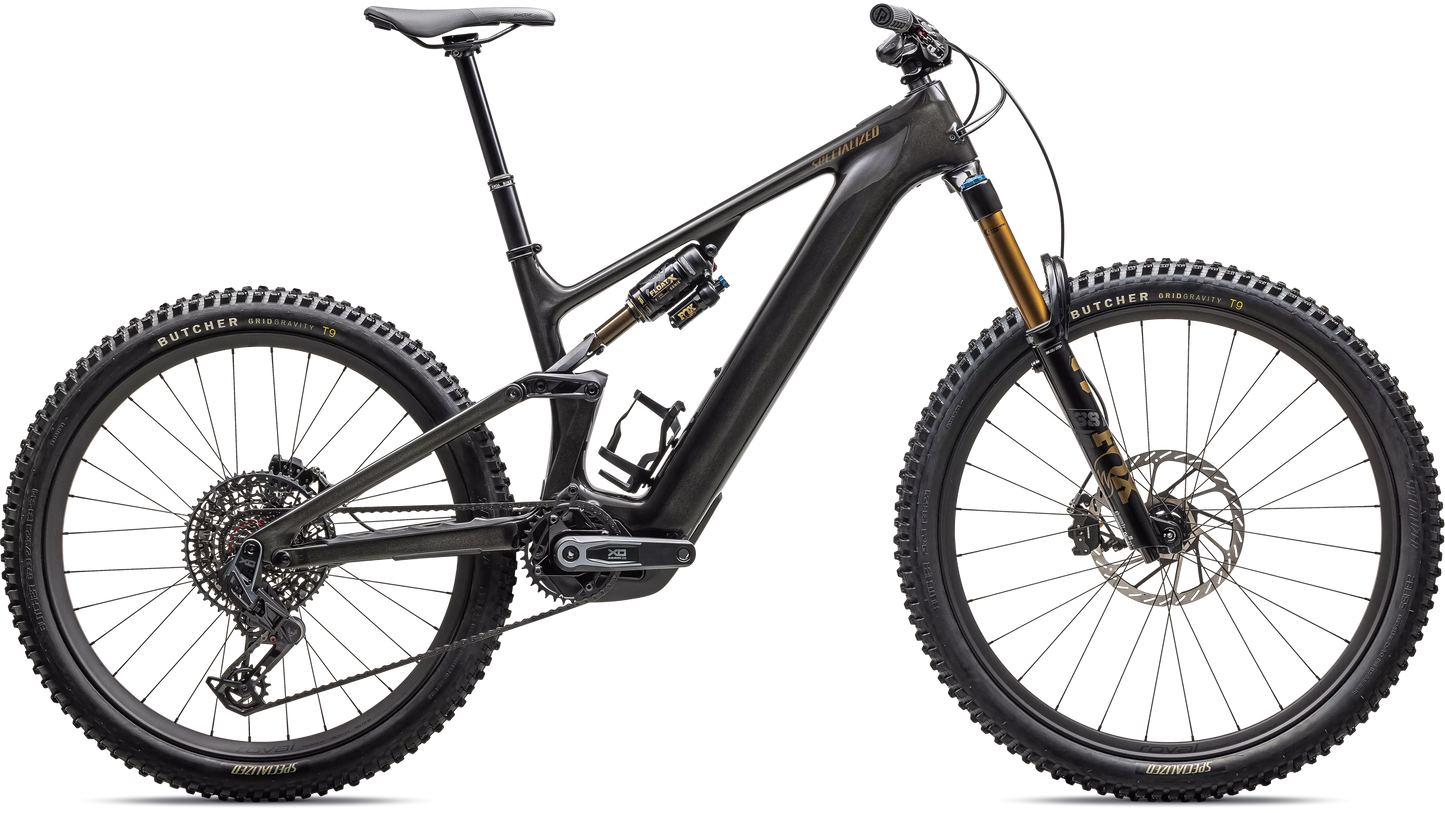

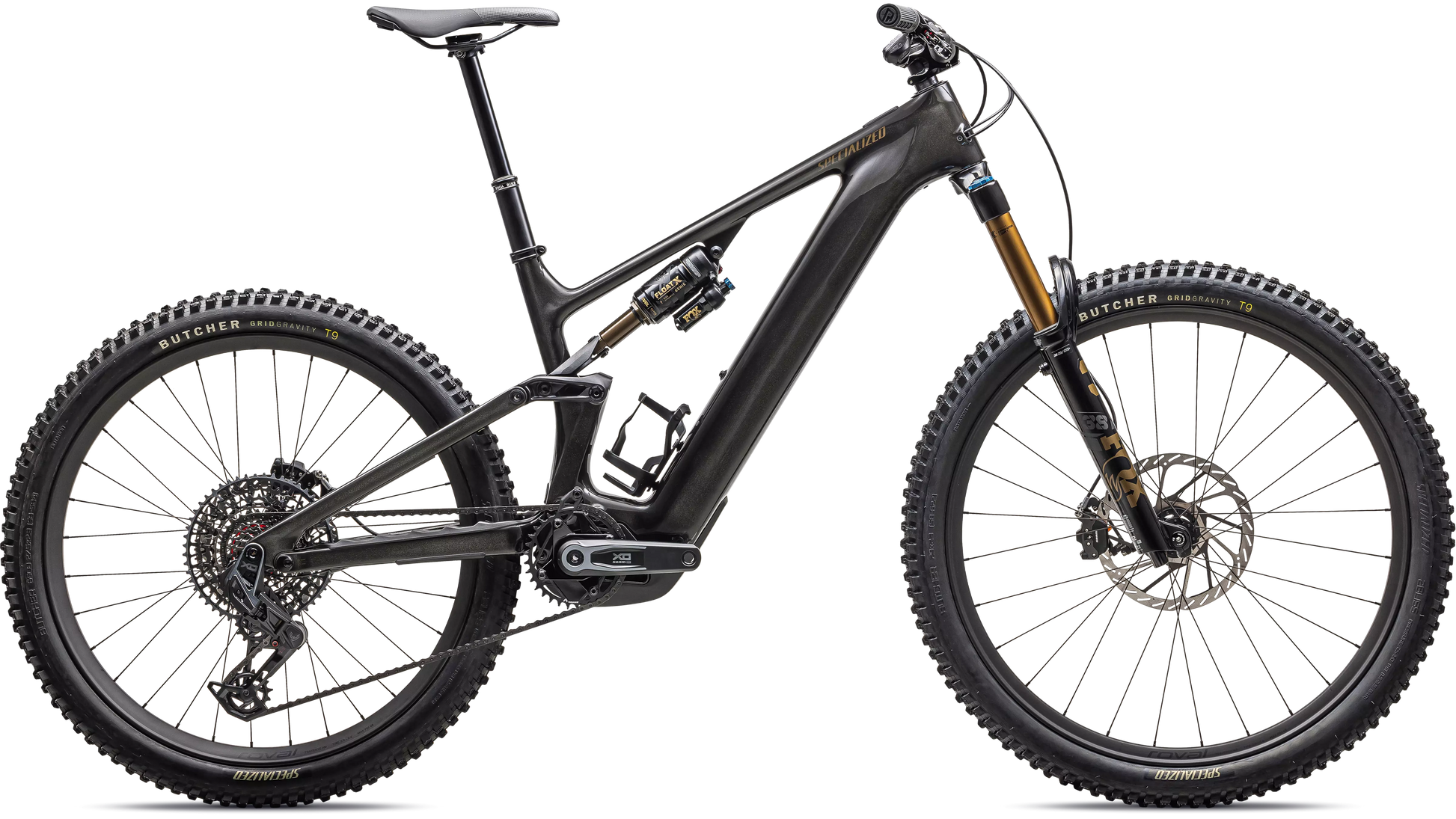

Turbo Levo 4 Pro

SKU:

R 240,000.00
R 240,000.00
Sale Sold out
Tax included.
Size
×

Turbo Levo 4 Pro

SKU Size Color STOCK (All Locations)
95224-1002 S2 Gloss Blue Onyx / Dark Navy / Birch Sold Out (0 total)
95224-1003 S3 Gloss Blue Onyx / Dark Navy / Birch Sold Out (0 total)
95224-1004 S4 Gloss Blue Onyx / Dark Navy / Birch Sold Out (0 total)
95224-1005 S5 Gloss Blue Onyx / Dark Navy / Birch 1 (all locations)
95224-1006 S6 Gloss Blue Onyx / Dark Navy / Birch Sold Out (0 total)
95224-1302 S2 Gloss Metallic Obsidian / Burnt Gold Metallic Sold Out (0 total)
95224-1303 S3 Gloss Metallic Obsidian / Burnt Gold Metallic Sold Out (0 total)
95224-1304 S4 Gloss Metallic Obsidian / Burnt Gold Metallic Sold Out (0 total)
95224-1305 S5 Gloss Metallic Obsidian / Burnt Gold Metallic Sold Out (0 total)
Color
Gloss Blue Onyx / Dark Navy / Birch
Gloss Metallic Obsidian / Burnt Gold Metallic

Only 1 left in stock!

View full details

101Nm Torque, 666W Power, 840Wh Battery

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so...

×

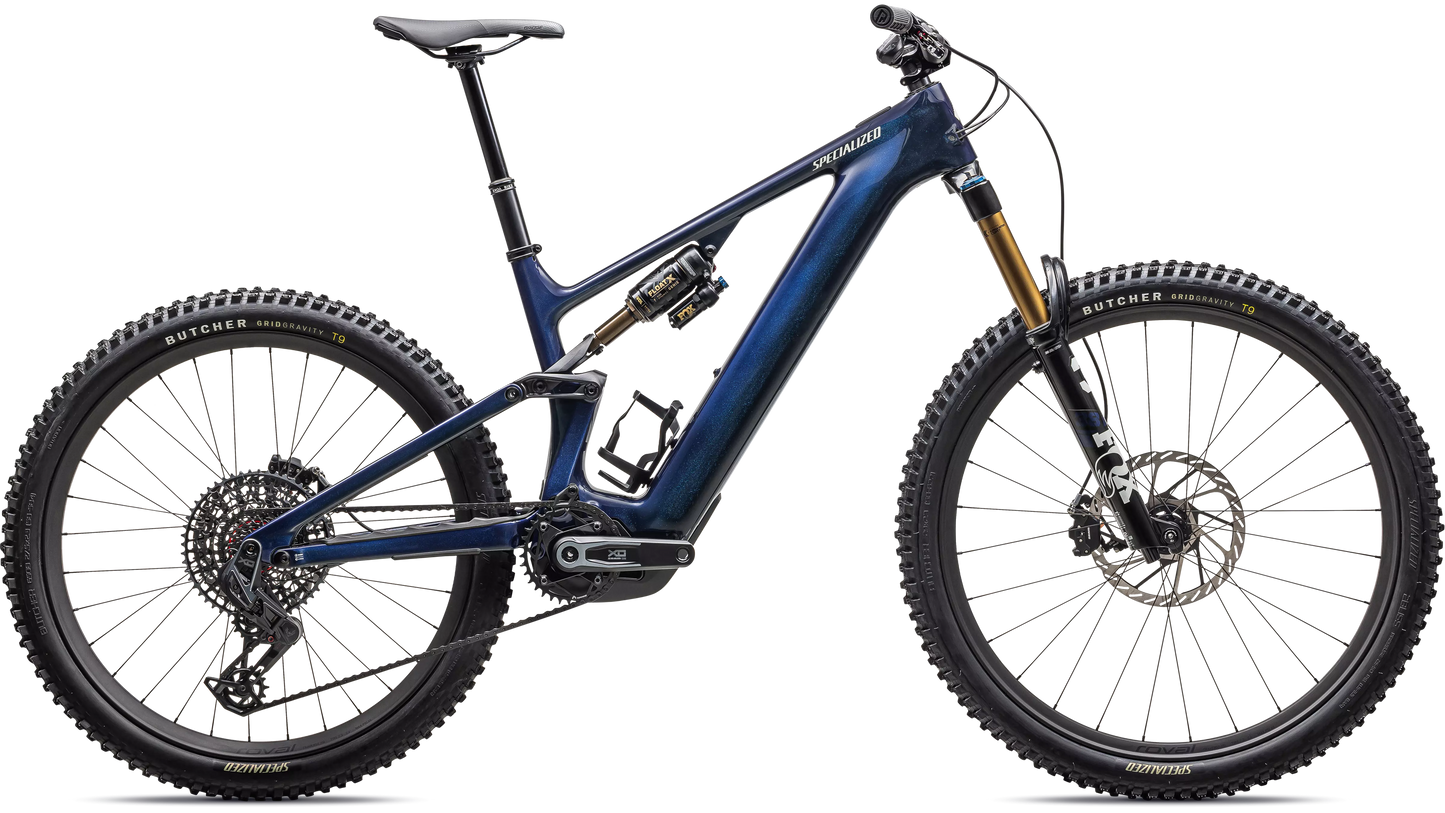

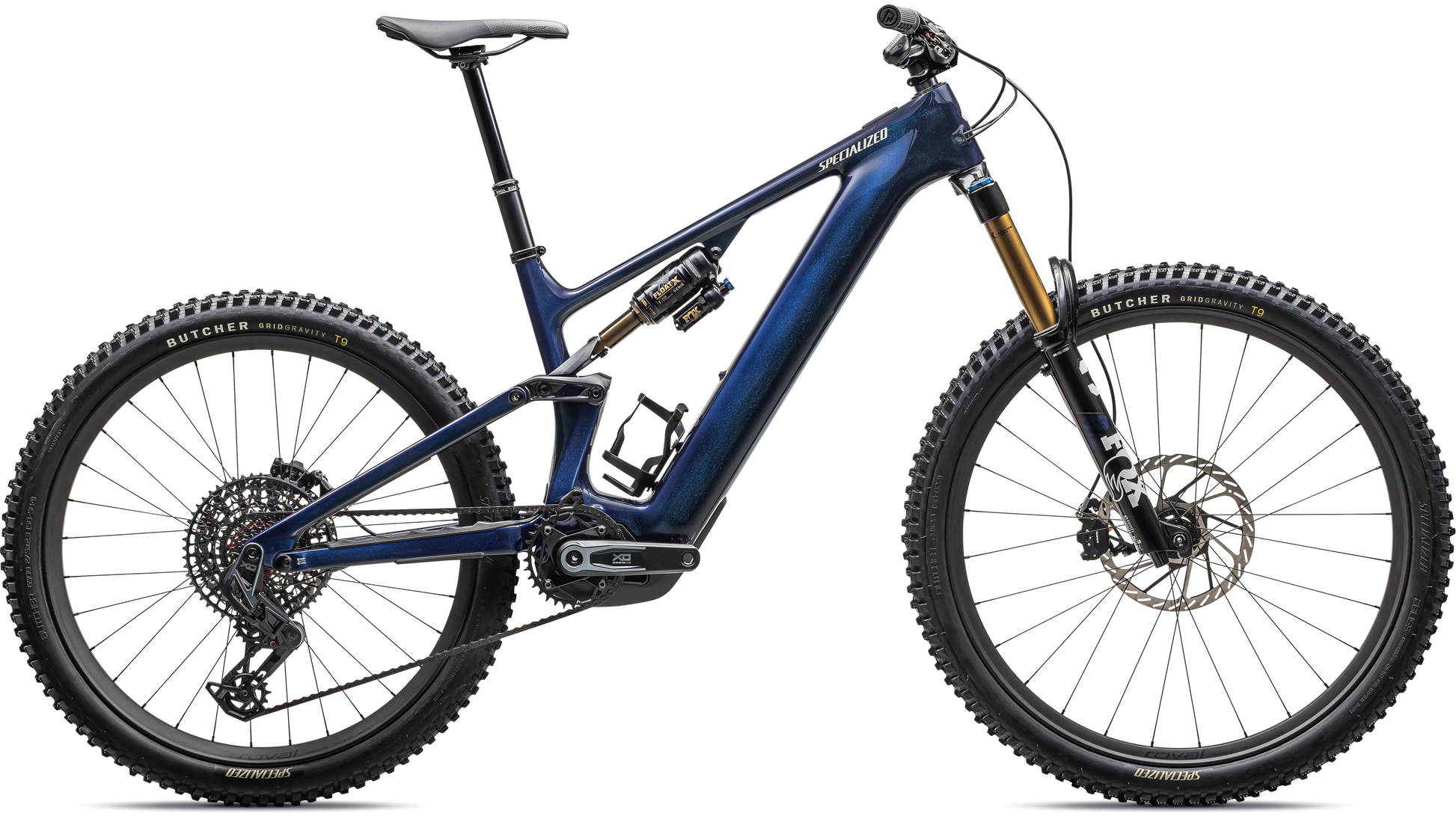

Turbo Levo 4 Pro

101Nm Torque, 666W Power, 840Wh Battery

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

TECHNICAL SPECIFICATIONS

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

BRAKES

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

COCKPIT

Saddle

Bridge Mimic Expert, Hollow Ti rails

Grips

Deity Lockjaw grips

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

SeatPost

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Handlebars

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

WHEELS

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h

Inner Tubes

Standard, Presta valve

E-BIKE

Wiring Harness

-

Charger

Specialized 4amp charger

Motor

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Battery

840wh battery

UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

SUSPENSION

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Rear Shock

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

DRIVETRAIN

Crankset

SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm

Shift Levers

SRAM AXS POD Controller

Chainrings

SRAM 34T T-Type chainring, 104 BCD, steel

Rear Derailleur

SRAM X0 Eagle Transmission

Chain

SRAM X0

Cassette

SRAM XO 1295, 12 speed, 10-52

ACCESSORIES

SWAT

SWAT internal downtube storage

Pedals

-

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY


  • S1
  • S2
  • S3
  • S4
  • S5
  • S6
  • S6
    •

S2S3S4S5S6
Crank Length 155mm 155mm 155mm 155mm 155mm
Handlebar Width 800mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 160mm 185mm 213mm 213mm
Stack 618mm 626mm 638mm 652mm 667mm
Reach 435mm 455mm 480mm 505mm 535mm
Headtube Length 95mm 103mm 117mm 132mm 149mm
Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
BB Height 350mm 350mm 350mm 350mm 350mm
BB Drop 29.5mm 29.5mm 29.5mm 29.5mm 29.5mm
Trail 132mm 132mm 132mm 132mm 132mm
Fork Length (full) 577mm 577mm 577mm 577mm 577mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 765mm 789mm 820mm 851mm 888mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1200mm 1223mm 1254mm 1286mm 1323mm
Top-tube Length (horizontal) 578mm 599mm 627mm 655mm 689mm
Bike Standover Height 753mm 754mm 753mm 758mm 761mm
Seat Tube Length 390mm 405mm 425mm 445mm 465mm
Seat Tube Angle 77° 77° 77° 77° 77°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 274mm 289mm 313mm 337mm 357mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm
