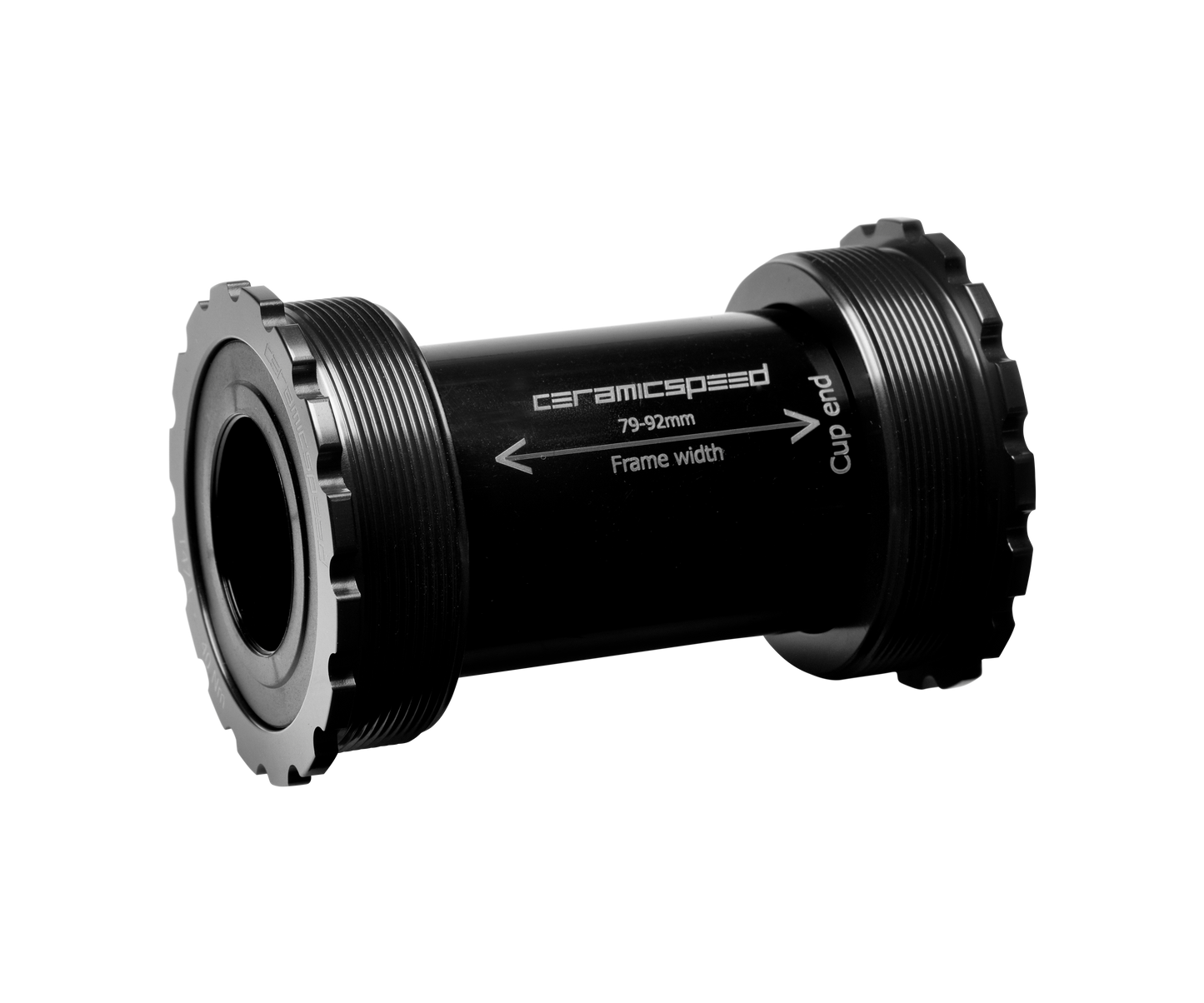

      Coated T47/86 Bottom Bracket for Shimano

      T47 is a newer bottom bracket shell design, utilizing the oversized interface of PF30 and EVO386, but with the benefit and peace of mind of a threaded interface. This bottom bracket allows you to install Shimano and other 24mm diameter thru-axle cranks into a T47 shell.

      It's compatible with 86mm wide frames, and also compatible with TREK T47 85.5mm wide frames.

      There are 2 versions: Standard and Coated Bearings. CeramicSpeed Bearings come installed in cups and are connected through the shell. Both have super round CeramicSpeed Balls and hardened-steel races. The CeramicSpeed Coated Bearings have an additional attribute: a 3-micron thick metallic layer over the races. This addition makes the races harder and smoother, lowering drag and increasing life.

      Bottom Bracket tool for installation: BBT-47.

      In The Box

      • 2 threaded cups with CeramicSpeed Bearings installed.
      • 2 dust covers.
      • Spacer tube.
      • All Round Grease
      • Sticker Sheet.

    1 1

CERAMICSPEED

Coated T47/86 Bottom Bracket for Shimano

SKU:

R 8,499.00
R 8,499.00
Sale Sold out
Tax included.
Size
×

Coated T47/86 Bottom Bracket for Shimano

SKU Size Color STOCK
105154 Shimano, FSA, Rotor 24mm Black Arrives in 7 days
Color
Black
*Product will arrive 7-10 days from order
View full details

T47 is a newer bottom bracket shell design, utilizing the oversized interface of PF30 and EVO386, but with the benefit and peace of mind of a threaded interface. This bottom bracket allows you to install Shimano and other 24mm diameter thru-axle cranks into a...

×

Coated T47/86 Bottom Bracket for Shimano

T47 is a newer bottom bracket shell design, utilizing the oversized interface of PF30 and EVO386, but with the benefit and peace of mind of a threaded interface. This bottom bracket allows you to install Shimano and other 24mm diameter thru-axle cranks into a T47 shell.

It's compatible with 86mm wide frames, and also compatible with TREK T47 85.5mm wide frames.

There are 2 versions: Standard and Coated Bearings. CeramicSpeed Bearings come installed in cups and are connected through the shell. Both have super round CeramicSpeed Balls and hardened-steel races. The CeramicSpeed Coated Bearings have an additional attribute: a 3-micron thick metallic layer over the races. This addition makes the races harder and smoother, lowering drag and increasing life.

Bottom Bracket tool for installation: BBT-47.

In The Box

  • 2 threaded cups with CeramicSpeed Bearings installed.
  • 2 dust covers.
  • Spacer tube.
  • All Round Grease
  • Sticker Sheet.

TECHNICAL SPECIFICATIONS

T47 is an open standard designed to provide the benefits of both oversized shells and the tight fit of threading. These cups and bearings adapt the shell so it is compatible with 24mm diameter spindle cranks.

Compatible with 86mm wide frames, and also compatible with TREK T47 85.5mm wide frames.

Our CeramicSpeed Standard Bearings reduce drag by 75% when compared to stock bottom brackets. Down to 0.3-0.4 watts per set. This is the result of hardened-steel races combined with CeramicSpeed Balls that are 100% smoother and 15% harder than the ceramic competition. They also last longer.

The CeramicSpeed coated Bearings feature an even longer lifespan and even lower drag. Life increases by 60% and drag drops by 50% compared to our CeramicSpeed Standard Bearings.

Applied to the bearings at the factory is All Round Grease. It can be replaced for lower drag Race Day Grease, or higher durability Long Life Grease, which adds a bit of drag but stays in when riding through messy conditions.

INSTALLATION

Installation of T47/86 Bottom Bracket for Shimano

If you don't have any experience installing bottom brackets and bearings, we recommend that you have your local bike shop fit your new bearings. Find your nearest retailer.



Installation of Shimano cranks on CeramicSpeed Bottom Brackets

MAINTENANCE

Maintenance of CeramicSpeed Bottom Brackets

We recommend that you follow our instructions on how to maintain your CeramicSpeed Bottom Brackets to achieve the lowest friction and the best longevity.
