OSPW X for SRAM Rival & Force 1 Type 3
The fastest oversized pulley wheel system in the world is also available for SRAM Rival & Force 1 Type 3 derailleurs.
Featuring 14-tooth (upper) and 18-tooth (lower) pulleys with a narrow-wide profile, the OSPW X System for SRAM...

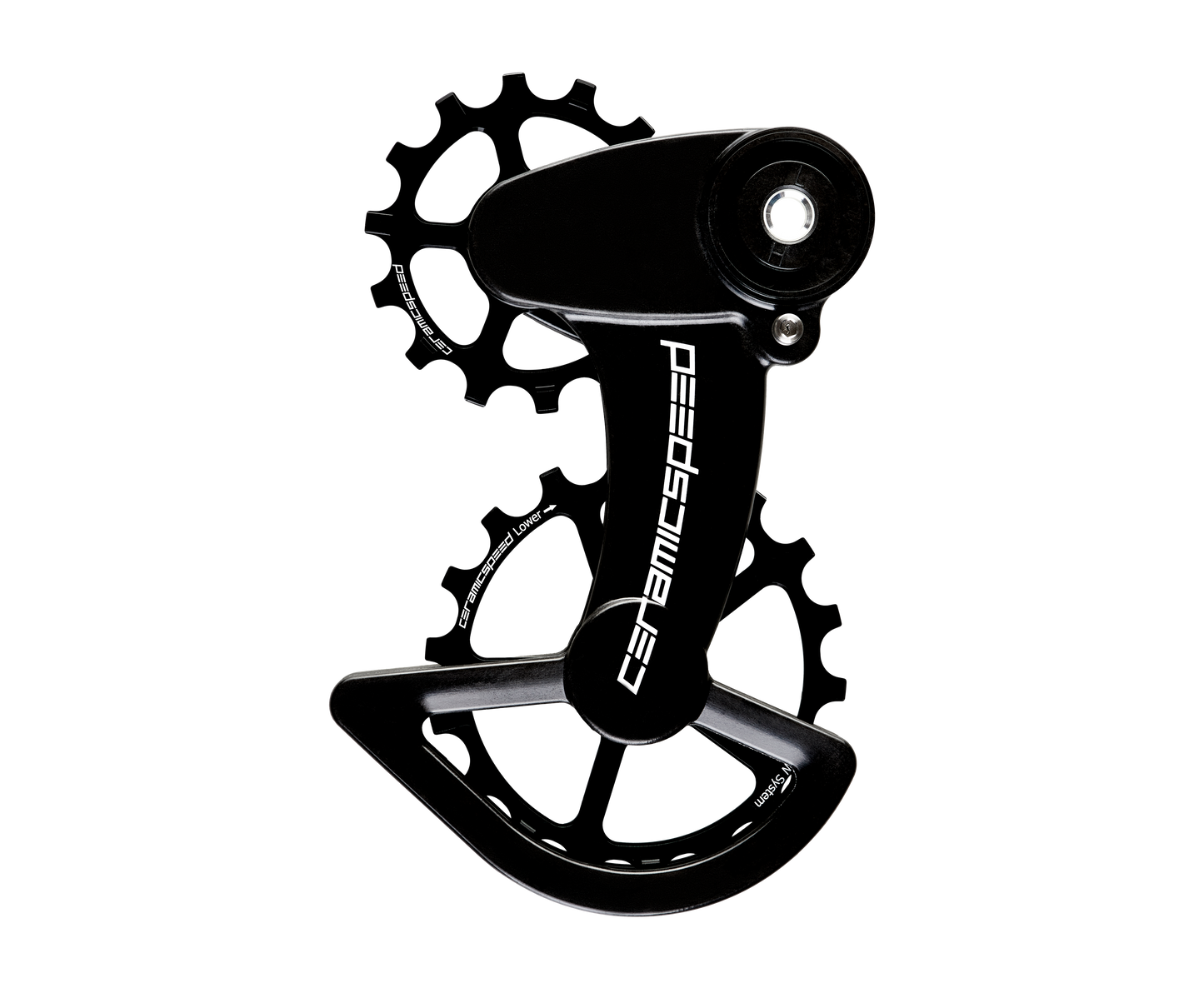

Coated OSPW X for SRAM Rival & Force 1 Type 3
The fastest oversized pulley wheel system in the world is also available for SRAM Rival & Force 1 Type 3 derailleurs. Featuring 14-tooth (upper) and 18-tooth (lower) pulleys with a narrow-wide profile, the OSPW X System for SRAM 1x is available fitted with CeramicSpeed standard (4 years warranty) coated or SLT bearings (lifetime warranty). The unique narrow-wide tooth profile of the pulleys ensures durable chain retention. The system is fitted with a custom designed, strong carbon fiber pulley cage assembly for long durability and light weight. The cage design allows you to choose between two spring tension settings to customise performance and reduce chain drag. We recommend initial setup in the lower spring tension. This has been designed to leave the clutch mechanism fully functional for chain retention. In the event that the low spring tension does not provide adequate shift quality on real rough roads, you can increase it to the high spring tension which corresponds to the factory settings. Thanks to the high-quality CeramicSpeed Bearings inside, your product will benefit from 3-5 times longer lifetime compared to stock. The OSPW X System for SRAM 1x has been tested to deliver 30-40% less friction than conventional systems. Together with the top quality CeramicSpeed Bearings inside, the product is completely developed and handbuilt in Denmark. The OSPW X System for SRAM 1X is compatible with: In The BoxOSPW X for SRAM Rival & Force 1 Type 3
Collapsible content
TECHNICAL SPECIFICATIONS
The OSPW X cage fits all Rival & Force1 derailleurs with Type 3 clutch regardless of the cage length. The cage lock position needs to be in the 8 o’clock position (not 5 o’clock) for complete functionality. The cage is NOT compatible with Type 2.1 clutch. • SRAM Force 1X 11 speed with Type 3 clutch and cage lock position 8 o’clock* • SRAM Rival 1X 11 speed with Type 3 clutch and cage lock position 8 o’clock* NOT compatible with Apex 1 due to difference in cage lock design *Attention Only install this product on derailleurs with an 8 o’clock cage lock position. It will not fit derailleurs with a 5 o’clock cage lock position. See more in the Support section here.Technical Data
Technical Specifications:
Pulley Wheels:
CeramicSpeed 14-tooth upper and 18-tooth lower narrow-wide pulley wheels
Pulley Wheel Material:
Aluminium
Cage Material (OSPW):
Carbon reinforced PA
Bearing options:
CeramicSpeed Standard or Coated
CeramicSpeed Grease:
Pulley Oil (standard)
Compatibility:
Compatibility Cassette:
Fits cassettes up to 42-tooth
Spring Tension Settings:
2 spring tension settings
Speed & Discipline:
11 speed for Road and Gravel/Cross
INSTALLATION
In order to get the best performance and shifting from your OSPW X System, it is recommended to have the system installed by a professional bike mechanic. Below are two step-by-step installation guides on how to best install the CeramicSpeed OSPW X System for SRAM Rival & Force 1 Type 3. When travelling, please remember to dismount your entire rear derailleur, as the OSPW X System will not fit in most bike travel bags and could be damaged if left on.Installation of OSPW X for SRAM Rival & Force 1 Type 3
MAINTENANCE
Regarding the maintenance of your OSPW X System, it is important that you properly lubricate your bearings in order to ensure optimal performance and maximum longevity. Add oil by using the lubrication points on the back cage plate, so that oil can penetrate the bearing. Do this when you lubricate your chain, if you have washed your bike or after riding in wet or muddy conditions.Maintenance of CeramicSpeed OSPW X
