      • The BSA, or English threaded, bottom bracket is a traditional shell size. It has an inner diameter of 34mm and is 68mm wide. These cups thread into the BSA shell making it possible to install SRAM and Quarq 24/22mm spindle cranks.

      The CeramicSpeed kit comes with bearings...

      ×

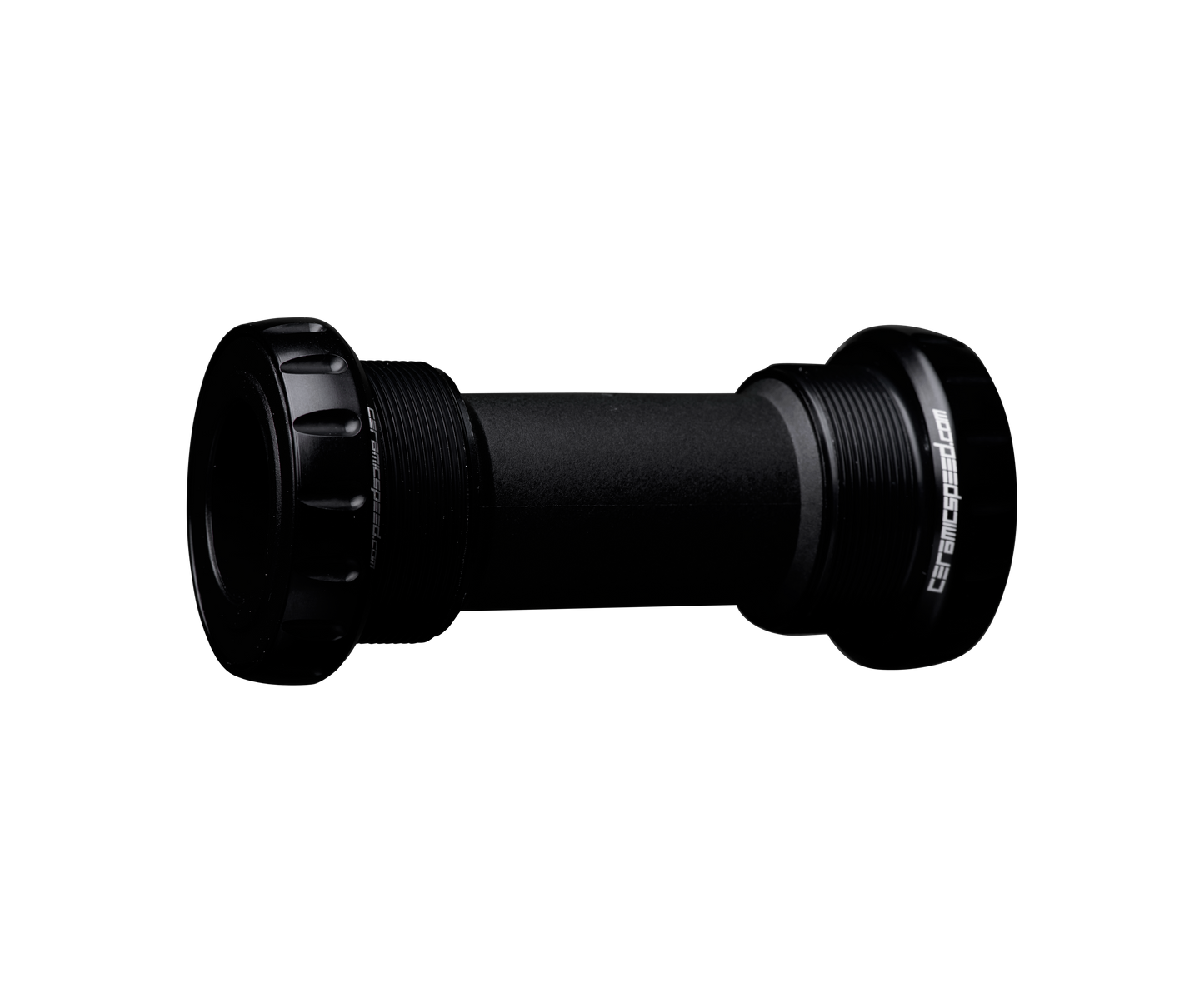

      BSA Bottom Bracket for SRAM GXP Road

      The BSA, or English threaded, bottom bracket is a traditional shell size. It has an inner diameter of 34mm and is 68mm wide. These cups thread into the BSA shell making it possible to install SRAM and Quarq 24/22mm spindle cranks.

      The CeramicSpeed kit comes with bearings pressed into threaded cups, which are then threaded into the frame. Those bearings consist of either CeramicSpeed Standard or Coated Bearings. Super smooth, super round CeramicSpeed balls are rotating in hardened-steel races in both. The Coated version has a metallic coating laid onto the races, making it even smoother and harder, resulting in longer life and lower drag.

      In The Box

      • 2 threaded cups with bearings installed.
      • 2 dust covers.
      • 1mm spacer
      • 0.5mm spacer.
      • GXP wave washer.
      • Spacer tube.
      • All Round Grease.
      • Sticker sheet.

    1 2

CERAMICSPEED

BSA Bottom Bracket for SRAM GXP Road

SKU:

R 6,399.00
R 6,399.00
Sale Sold out
Tax included.
Size
×

BSA Bottom Bracket for SRAM GXP Road

SKU Size Color STOCK
101319 SRAM GXP 24 / 22,2mm Black Arrives in 7 days
Color
Black
*Product will arrive 7-10 days from order
View full details

The BSA, or English threaded, bottom bracket is a traditional shell size. It has an inner diameter of 34mm and is 68mm wide. These cups thread into the BSA shell making it possible to install SRAM and Quarq 24/22mm spindle cranks.

The CeramicSpeed kit comes with bearings...

×

BSA Bottom Bracket for SRAM GXP Road

The BSA, or English threaded, bottom bracket is a traditional shell size. It has an inner diameter of 34mm and is 68mm wide. These cups thread into the BSA shell making it possible to install SRAM and Quarq 24/22mm spindle cranks.

The CeramicSpeed kit comes with bearings pressed into threaded cups, which are then threaded into the frame. Those bearings consist of either CeramicSpeed Standard or Coated Bearings. Super smooth, super round CeramicSpeed balls are rotating in hardened-steel races in both. The Coated version has a metallic coating laid onto the races, making it even smoother and harder, resulting in longer life and lower drag.

In The Box

  • 2 threaded cups with bearings installed.
  • 2 dust covers.
  • 1mm spacer
  • 0.5mm spacer.
  • GXP wave washer.
  • Spacer tube.
  • All Round Grease.
  • Sticker sheet.

TECHNICAL SPECIFICATIONS

The cups come with bearings installed and a sleeve is included to further seal the system from the elements and from rubbing on internal cables.

The Standard Bearings have only 0.3-.04 watts of frictional drag per set, an average drag reduction of 75% compared to stock bottom brackets. This is the result of superior design including hardened-steel races, and ceramic balls that are 100% smoother and 15% harder than the ceramic competition. They also last 3x longer.

Coated Bearings last even longer and feature even lower drag. Life is boosted by 60% and drag plummets by 50% compared to our Standard.

All Round Grease is used in the bearings. It can be replaced for lower drag Race Day Grease, or higher durability Long Life Grease, which adds a bit of drag but stays in when riding through messy conditions.

INSTALLATION

Installation of BSA Bottom Bracket for SRAM GXP Road

If you don't have any experience installing bottom brackets and bearings, we recommend that you have your local bike shop fit your new bearings. Find your nearest retailer.



Installation of SRAM GXP cranks on CeramicSpeed Bottom Brackets

MAINTENANCE

We recommend that you follow our instructions on how to maintain your CeramicSpeed Bottom Brackets to achieve the lowest friction and the best longevity.
