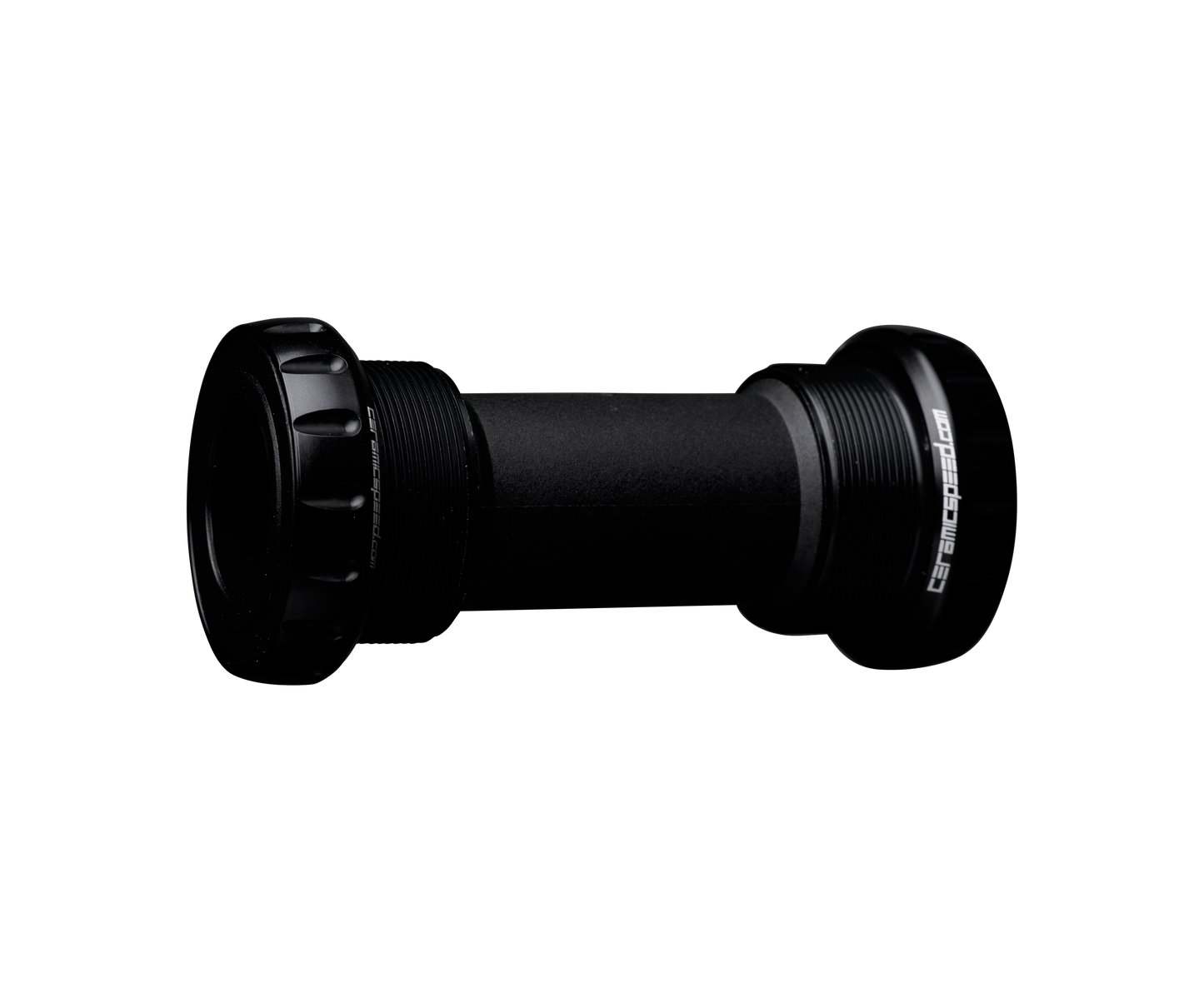

      BSA Bottom Bracket for Shimano Road

      BSA is another way of stating English threading; it comes from British Standard Cycle. English threading on road bikes mean a 68mm wide, 34mm inside diameter shell with reverse threading on the drive side. It’s the most common threaded standard employed today. This kit works with 24mm diameter thru-axle cranks, found on Shimano, FSA, Rotor, among others.

      Choose between two bearings for the cups. Standard Bearings have low drag thanks to hardened-steel races and our Ceramic balls. Coated Bearings have those same balls installed on coated, hardened-steel races for longer life and less bearing drag.

      In The Box

      • 2 threaded cups with bearings.
      • 2 dust covers with built-in spacers.
      • Spacer tube.
      • All Round Grease.
      • Sticker sheet.

    1 2

CERAMICSPEED

BSA Bottom Bracket for Shimano Road

SKU:

R 6,399.00
R 6,399.00
Sale Sold out
Tax included.
Size
×

BSA Bottom Bracket for Shimano Road

SKU Size Color STOCK
101307 Shimano, FSA, Rotor 24mm Black Arrives in 7 days
Color
Black
*Product will arrive 7-10 days from order
View full details

BSA is another way of stating English threading; it comes from British Standard Cycle. English threading on road bikes mean a 68mm wide, 34mm inside diameter shell with reverse threading on the drive side. It’s the most common threaded standard employed today. This kit works with 24mm...

×

BSA Bottom Bracket for Shimano Road

BSA is another way of stating English threading; it comes from British Standard Cycle. English threading on road bikes mean a 68mm wide, 34mm inside diameter shell with reverse threading on the drive side. It’s the most common threaded standard employed today. This kit works with 24mm diameter thru-axle cranks, found on Shimano, FSA, Rotor, among others.

Choose between two bearings for the cups. Standard Bearings have low drag thanks to hardened-steel races and our Ceramic balls. Coated Bearings have those same balls installed on coated, hardened-steel races for longer life and less bearing drag.

In The Box

  • 2 threaded cups with bearings.
  • 2 dust covers with built-in spacers.
  • Spacer tube.
  • All Round Grease.
  • Sticker sheet.

TECHNICAL SPECIFICATIONS

English threading is easy to work with and the drive side cup, thanks to being reverse-threaded, stays in place without extra effort. 24mm spindles easily fit through the shell, allow for large bearings to be employed in the outside cups.

Put more of your energy into forward motion by reducing frictional drag wherever you can. CS Standard Bearings typically have frictional drag of 0.3-0.4 watts per set. That’s in the range of a 75% drag reduction compared to standard bottom brackets. CS balls are 100% smoother and 15% harder than ceramic competition. The bearings last at least 3x longer than other bearings.

Race Day Grease, All Round, and Long Life are greases CS designed to help the bearings roll smoothly. The first is the least drag, the last is the most durable. All Round comes in road bearings, Long Life in MTB. You can change the grease to tune performance.

INSTALLATION

Installation of BSA Bottom Bracket for Shimano Road

If you don't have any experience installing bottom brackets and bearings, we recommend that you have your local bike shop fit your new bearings. Find your nearest retailer.



Installation of Shimano crank on CeramicSpeed Bottom Brackets

MAINTENANCE

We recommend that you follow our instructions on how to maintain your CeramicSpeed Bottom Brackets to achieve the lowest friction and the best longevity.
