      • BB86 Bottom Bracket for SRAM GXP

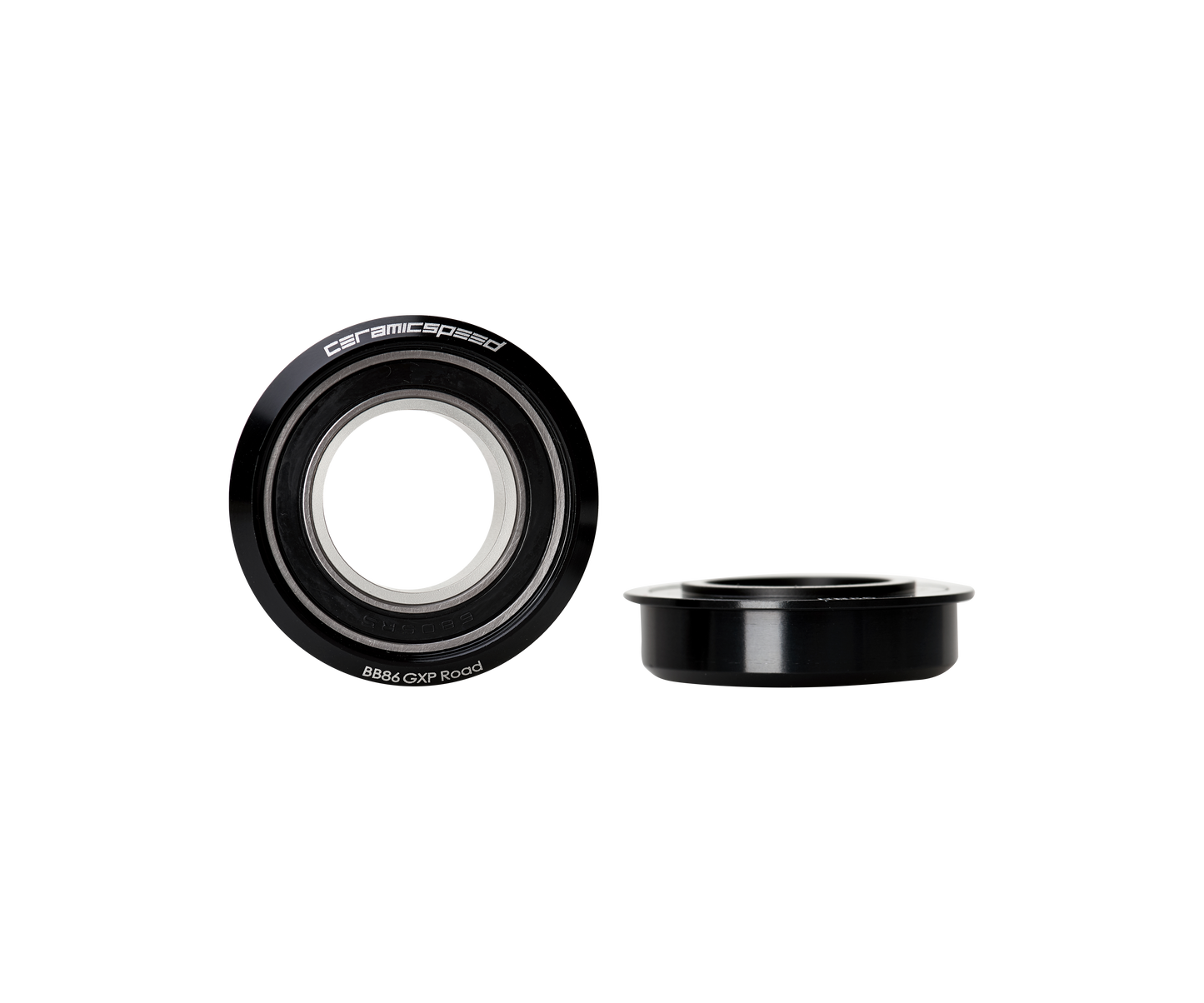

      The CeramicSpeed BB86 SRAM GXP Road Bottom Brackets are compatible with press-fit specific bike frames only. The shell diameter is 41mm ID, and when the bearings and cups are pressed in, they fit the 24/22mm SRAM and Quarq spindle.

      There are two...

      ×

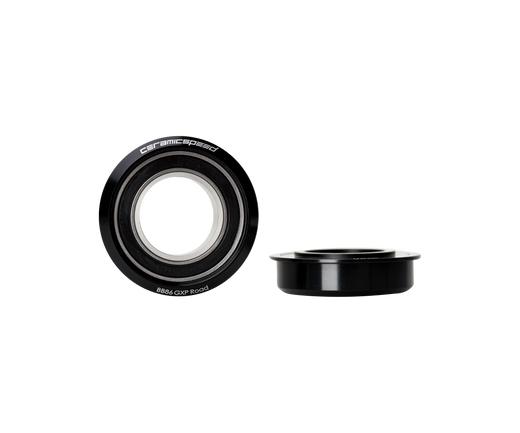

      Coated BB86 Bottom Bracket for SRAM GXP

      BB86 Bottom Bracket for SRAM GXP

      The CeramicSpeed BB86 SRAM GXP Road Bottom Brackets are compatible with press-fit specific bike frames only. The shell diameter is 41mm ID, and when the bearings and cups are pressed in, they fit the 24/22mm SRAM and Quarq spindle.

      There are two versions of the CeramicSpeed Bearings that come installed in the cups. The first is our low drag, long life Standard Bearing, with hardened-steel races and our super round CeramicSpeed Balls. The Coated Bearing is our second version, which uses those same balls installed on coated, hardened-steel races for longer life and lower drag.

      In The Box

      • 2 cups with bearings installed.
      • 2 dust covers.
      • 1mm spacer.
      • 0.5mm spacer.
      • Spacer tube.
      • GXP wave washer.
      • Plastic cable protector.
      • All Round Grease.
      • Sticker sheet.

    1 2

CERAMICSPEED

Coated BB86 Bottom Bracket for SRAM GXP

SKU:

R 8,499.00
R 8,499.00
Sale Sold out
Tax included.
Size
×

Coated BB86 Bottom Bracket for SRAM GXP

SKU Size Color STOCK
101485 SRAM GXP 24 / 22,2mm Black Arrives in 7 days
Color
Black
*Product will arrive 7-10 days from order
View full details

BB86 Bottom Bracket for SRAM GXP

The CeramicSpeed BB86 SRAM GXP Road Bottom Brackets are compatible with press-fit specific bike frames only. The shell diameter is 41mm ID, and when the bearings and cups are pressed in, they fit the 24/22mm SRAM and Quarq spindle.

There are two...

×

Coated BB86 Bottom Bracket for SRAM GXP

BB86 Bottom Bracket for SRAM GXP

The CeramicSpeed BB86 SRAM GXP Road Bottom Brackets are compatible with press-fit specific bike frames only. The shell diameter is 41mm ID, and when the bearings and cups are pressed in, they fit the 24/22mm SRAM and Quarq spindle.

There are two versions of the CeramicSpeed Bearings that come installed in the cups. The first is our low drag, long life Standard Bearing, with hardened-steel races and our super round CeramicSpeed Balls. The Coated Bearing is our second version, which uses those same balls installed on coated, hardened-steel races for longer life and lower drag.

In The Box

  • 2 cups with bearings installed.
  • 2 dust covers.
  • 1mm spacer.
  • 0.5mm spacer.
  • Spacer tube.
  • GXP wave washer.
  • Plastic cable protector.
  • All Round Grease.
  • Sticker sheet.

TECHNICAL SPECIFICATIONS

Technical Data

This BB86 bottom bracket works with cranks that have 24/22mm thru-axle spindles, including Quarq and SRAM.

Frictional drag of CeramicSpeed Standard Bearings is typically 0.3-0.4 watts per set. That represents an average 75% drag drop versus standard bottom brackets. The hardened-steel races feature ceramic balls that are 100% smoother and 15% harder than the ceramic competition. The bearings last at least three times longer than other bearings.

Coated Bearings reduce drag further and increase service life. The coated races see a 50% drag reduction and an improvement in bearing life of 60%.

Changing grease tunes performance. All Round Grease comes installed, but can be changed for lower drag Race Day Grease, or higher durability Long Life Grease, which adds a bit of drag but stays in when riding through messy conditions.

INSTALLATION

Installation of BB86 Bottom Bracket for SRAM GXP

If you don't have any experience installing bottom brackets and bearings, we recommend that you have your local bike shop fit your new bearings. Find your nearest retailer.



Installation of SRAM GXP cranks on CeramicSpeed Bottom Brackets

MAINTENANCE

Maintenance of CeramicSpeed Bottom Brackets

We recommend that you follow our instructions on how to maintain your CeramicSpeed Bottom Brackets to achieve the lowest friction and the best longevity.
