- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
...2025 S-Works Crux Frameset
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

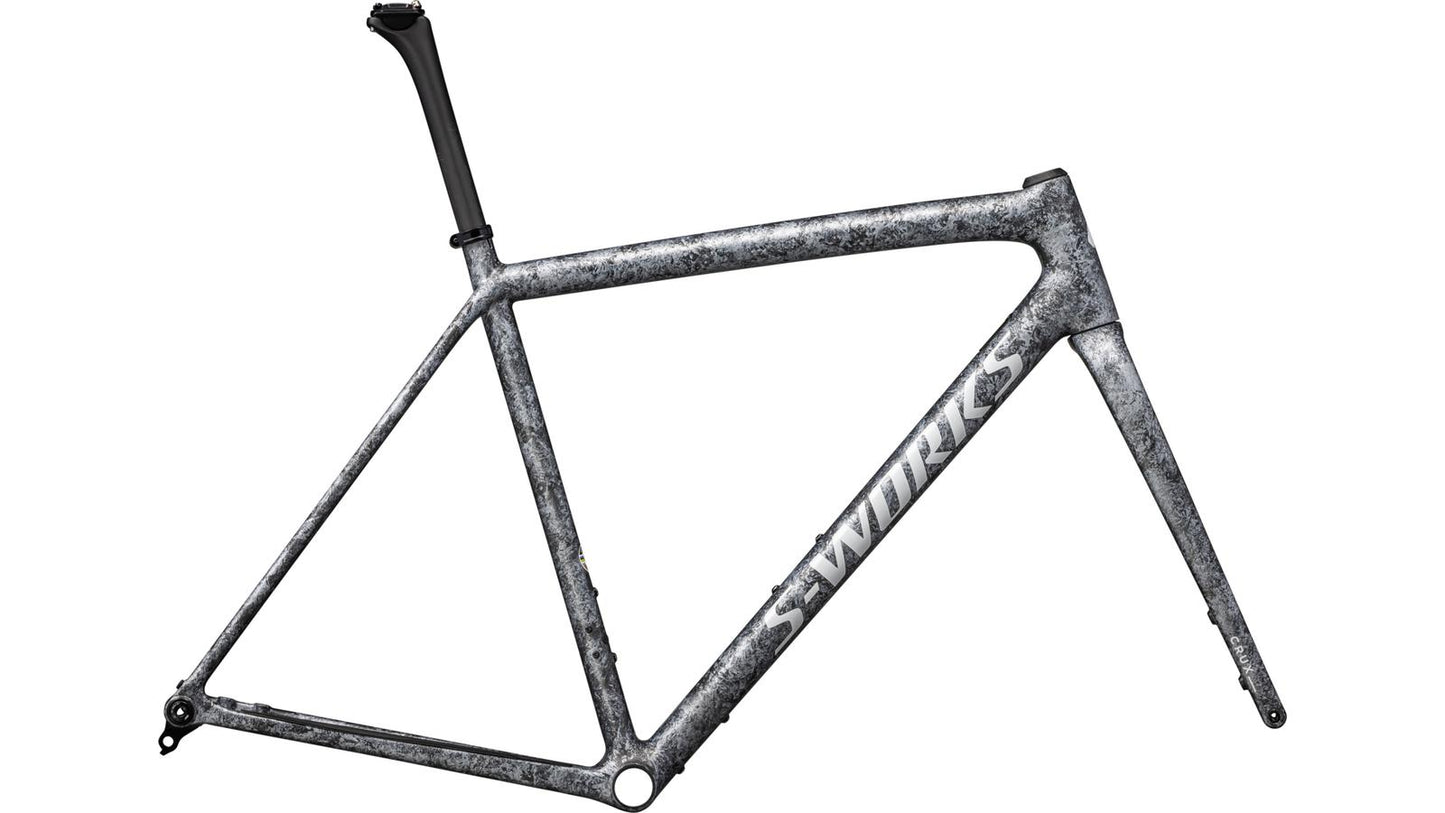

2025 S-Works Crux Frameset
SKU:
Share
Please find me:
2025 S-Works Crux Frameset
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
...2025 S-Works Crux Frameset
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
Collapsible content
TECHNICAL SPECIFICATIONS
FRAMESET
Frame
S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
SUSPENSION
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
COCKPIT
SeatPost
Roval Alpinist Carbon Seatpost
Seat Binder
Specialized Alloy, 30.0mm, titanium bolt
WEIGHT
Weight
1.43 kg (3 lb, 2.4 oz)
Weight Size
56
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 300mm | 360mm | 360mm | 360mm |
Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
