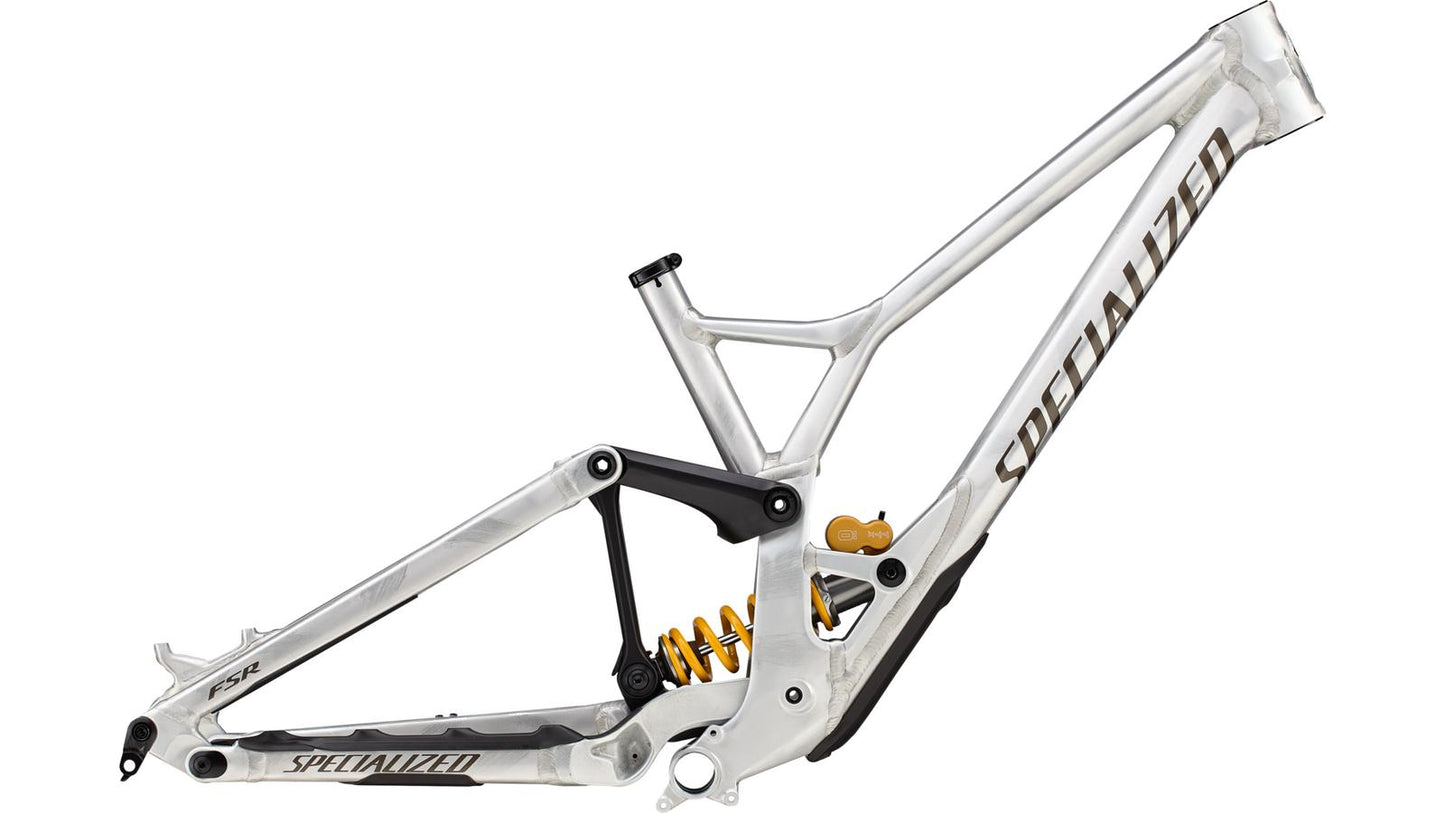

      2025 Demo Race Frameset

      The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction, and maneuverability while allowing for unmatched versatility.

      Öhlins's TTX22M.2 coil shock gives you a head start on suspension perfection, just hang your time-tested race kit before you pick up the search where we left off, and there’s a good chance you’ll find a few podiums along the way.



      • The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to 29-inch to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
      • The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.

    1 1

SPECIALIZED

2025 Demo Race Frameset

SKU:

R 55,000.00
R 55,000.00
Sale Sold out
Finance from 4950000

*Finance amount calculated at 10% deposit, over 48 months and at minimum interest rate.
Tax included.
Size
×

2025 Demo Race Frameset

SKU Size Color STOCK
74525-7003 S3 Flake Silver / Gunmetal / Brushed Sold Out
Color
Flake Silver / Gunmetal / Brushed
×

Please find me:

2025 Demo Race Frameset
View full details

The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed,...

×

2025 Demo Race Frameset

The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction, and maneuverability while allowing for unmatched versatility.

Öhlins's TTX22M.2 coil shock gives you a head start on suspension perfection, just hang your time-tested race kit before you pick up the search where we left off, and there’s a good chance you’ll find a few podiums along the way.



  • The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to 29-inch to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
  • The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.

TECHNICAL SPECIFICATIONS

FRAMESET

Frame

M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

SUSPENSION

Fork

#N/A

COCKPIT

SeatPost

Thomson, alloy, straight, 12-degree clamp

Seat Binder

Alloy, 34.9mm

WEIGHT

Weight

-

Weight Size

-

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY

S2 S3 S4
Crank Length 165mm 165mm 165mm
Stem Length 50mm 50mm 50mm
Handlebar Width 800mm 800mm 800mm
Seatpost Length 300mm 300mm 300mm
Saddle Width 130mm 130mm 130mm
Stack 632mm 632mm 632mm
Stack (29 mid) 629mm 629mm 629mm
Stack (27.5 mid) 635mm 635mm 635mm
Reach 426mm 446mm 466mm
Reach (29 mid) 430mm 450mm 470mm
Reach (27.5 mid) 423mm 443mm 463mm
Head-Tube Length 105mm 105mm 105mm
Head-Tube Angle 62.8° 62.8° 62.8°
Head-Tube Angle (29 mid) 63.2° 63.2° 63.2°
Head-Tube Angle (27.5 mid) 62.5° 62.5° 62.5°
B-B Height 350mm 350mm 350mm
B-B Height (29 mid) 355mm 355mm 355mm
B-B Height (27.5 mid) 345mm 345mm 345mm
B-B Drop 25mm 25mm 25mm
Trail 130mm 130mm 130mm
Trail (29 mid) 127mm 127mm 127mm
Trail (27.5 mid) 132mm 132mm 132mm
Fork Rake/Offset 56mm 56mm 56mm
Front-Center 801mm 821mm 841mm
Front-Center (29 mid) 801mm 821mm 841mm
Front-Center (27.5 mid) 801mm 821mm 841mm
Chain-Stay Length (29) 448mm 448mm 448mm
Chain-Stay Length (27.5) 438mm 438mm 438mm
Chain-Stay Length (mid) 443mm 443mm 443mm
Wheelbase (27.5) 1239mm 1259mm 1279mm
Wheelbase (29) 1249mm 1269mm 1289mm
Wheelbase (mid) 1244mm 1264mm 1284mm
Seat-Tube Length 394mm 420mm 420mm
Seat-Tube Angle 78.2° 76.8° 76.8°
Seat-Tube Angle (29 mid) 78.5° 77.1° 77.1°
Seat-Tube Angle (27.5 mid) 77.8° 76.4° 76.4°
