- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

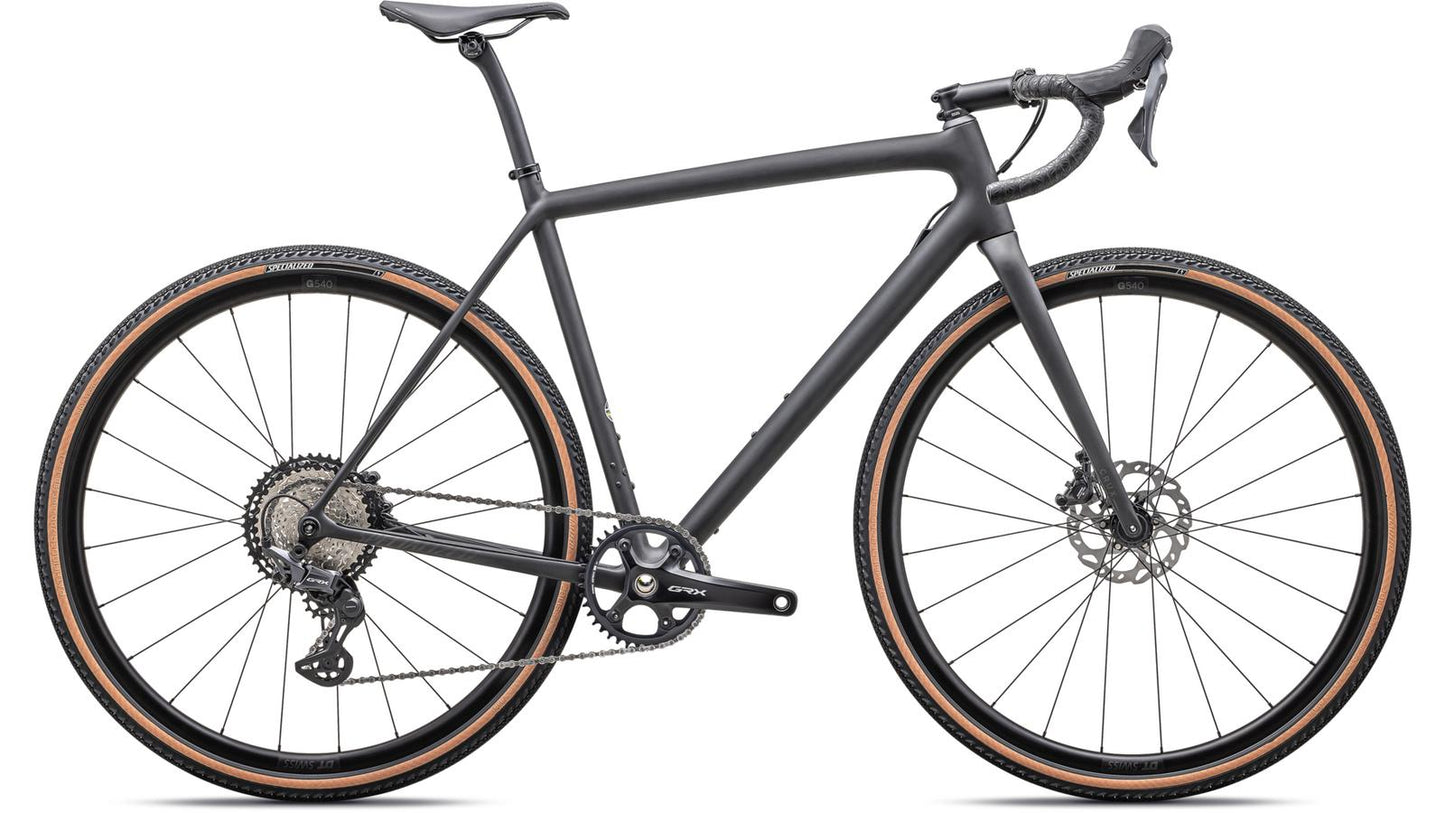

...2025 Crux Comp
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Comp comes spec'd with a reliable and smooth-shifting Shimano GRX 12-speed groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.
2025 Crux Comp
SKU:
Share
Only 2 left in stock!
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
...2025 Crux Comp
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Comp comes spec'd with a reliable and smooth-shifting Shimano GRX 12-speed groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.
Collapsible content
TECHNICAL SPECIFICATIONS
FRAMESET
Frame
Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
SUSPENSION
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
COCKPIT
Handlebars
Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Stem
3D-forged alloy, 31.8mm, 7-degree rise
Tape
Supacaz Super Sticky Kush
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Roval Terra Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 30mm
BRAKES
Front Brake
Shimano GRX RX820
Rear Brake
Shimano GRX RX820
DRIVETRAIN
Shift Levers
Shimano GRX RX820, 1x12-speed
Front Derailleur
-
Rear Derailleur
Shimano GRX RX822-GS, 12-speed
Cassette
Shimano XT, 12-speed, 10-45t
Crankset
Shimano GRX RX820
Chainrings
40T
Bottom Bracket
Shimano Threaded BSA BB
Chain
Shimano XT M8100, 12-speed w/ quick link
WHEELS & TIRES
Front Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel
DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire
Pathfinder Pro 2BR, Tan Sidewall, 700x38
Rear Tire
Pathfinder Pro 2BR, Tan Sidewall, 700x38
Inner Tubes
700x28/38mm, 48mm Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 300mm | 360mm | 360mm | 360mm |
Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
