      • The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

      ×

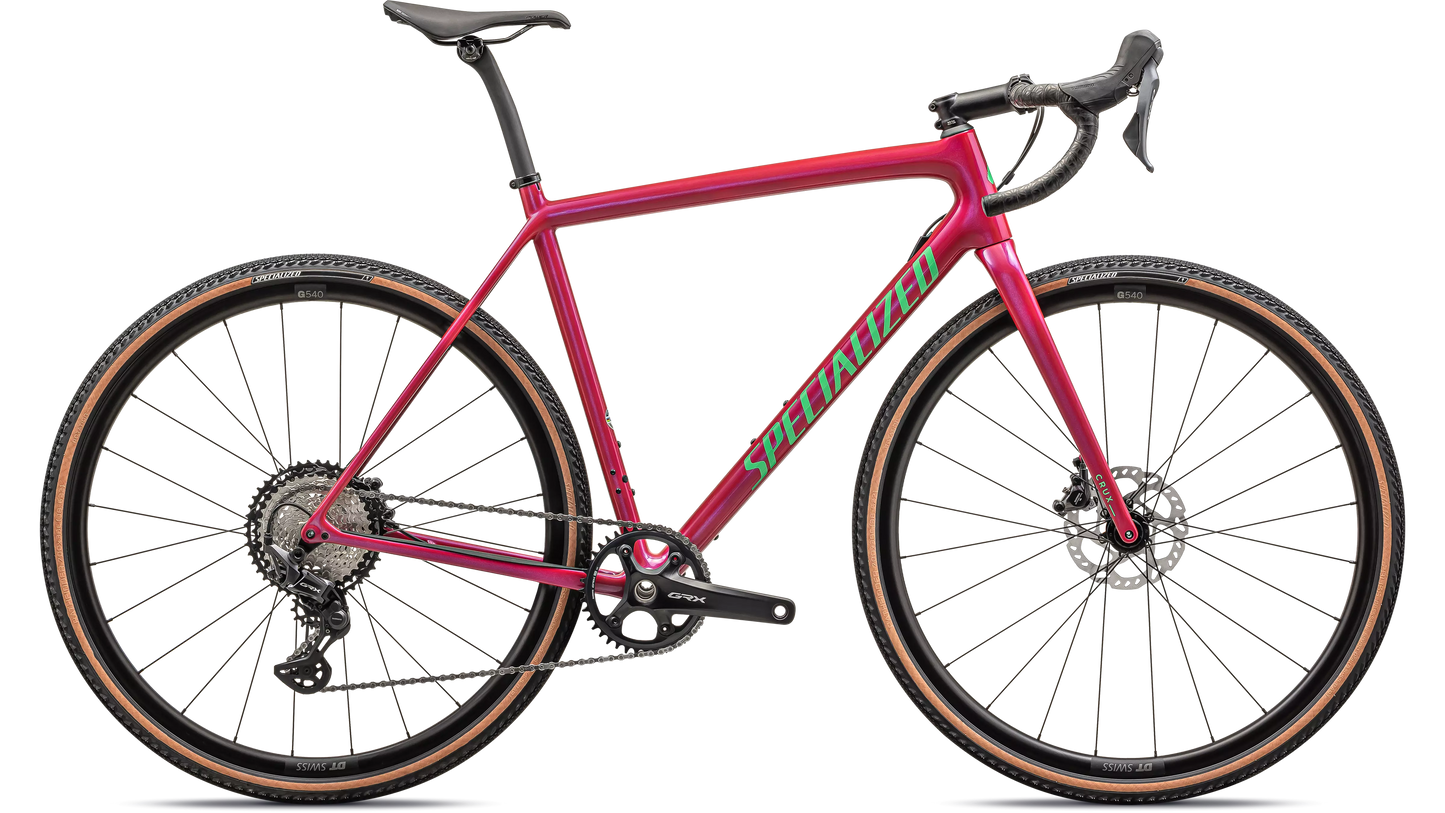

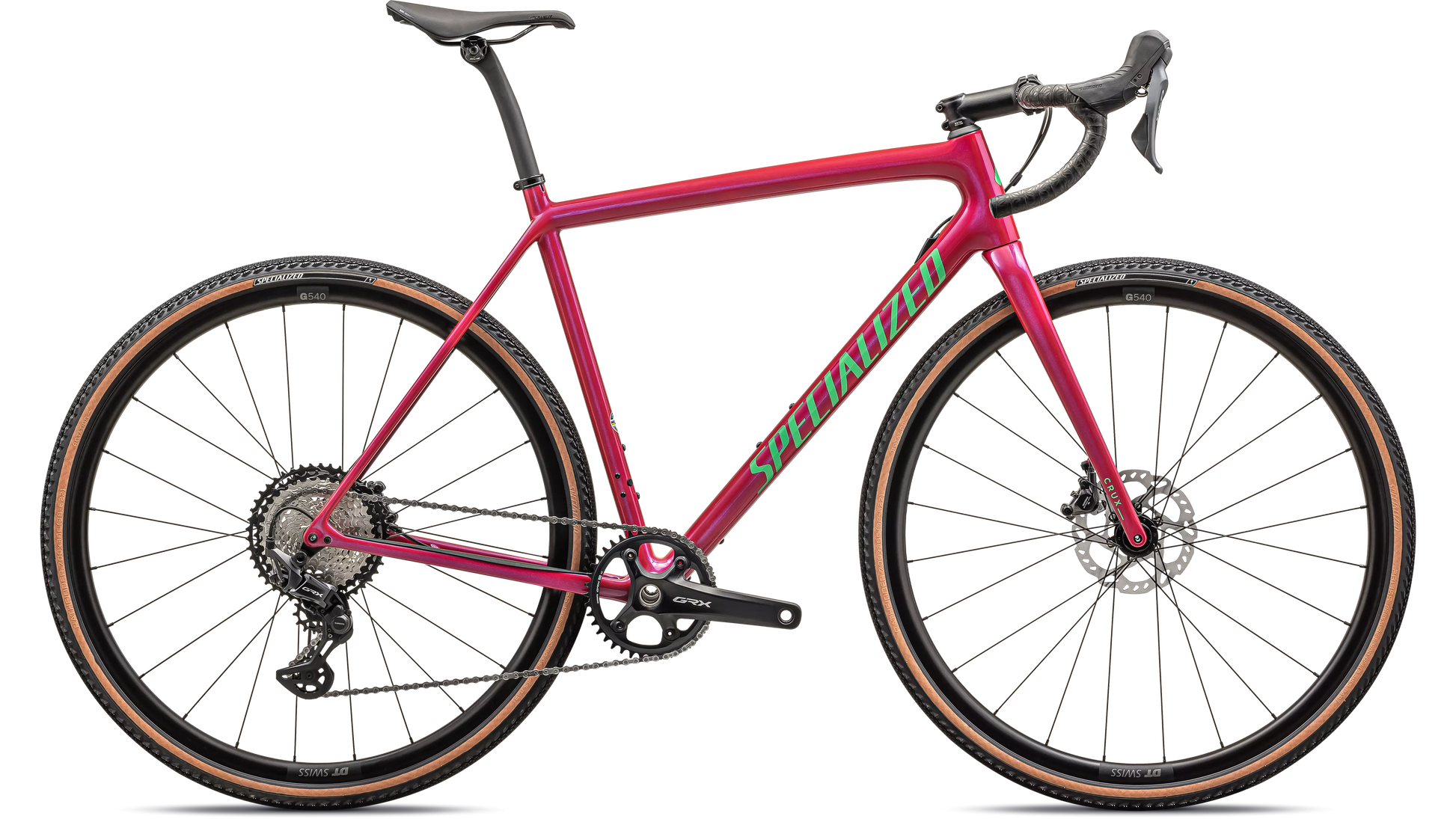

      2024 Crux Comp

      The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

      This Crux Comp comes spec'd with a reliable and smooth-shifting SRAM Rival 1 hydraulic disc groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

      • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
      • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
      • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.

    1 2

SPECIALIZED

2024 Crux Comp

SKU:

R 75,000.00
R 75,000.00
Sale Sold out
Finance from 6750000

*Finance amount calculated at 10% deposit, over 48 months and at minimum interest rate.
Tax included.
Size
×

2024 Crux Comp

SKU Size Color STOCK
91424-5049 49 Vivid Pink / Electric Green Sold Out
91424-5052 52 Vivid Pink / Electric Green Sold Out
91424-5054 54 Vivid Pink / Electric Green Sold Out
91424-5056 56 Vivid Pink / Electric Green Sold Out
91424-5058 58 Vivid Pink / Electric Green Sold Out
91424-5061 61 Vivid Pink / Electric Green Sold Out
91424-5154 54 Taupe / Smoke / Midnight Shadow Sold Out
91424-5156 56 Taupe / Smoke / Midnight Shadow Sold Out
91424-5158 58 Taupe / Smoke / Midnight Shadow Sold Out
Color

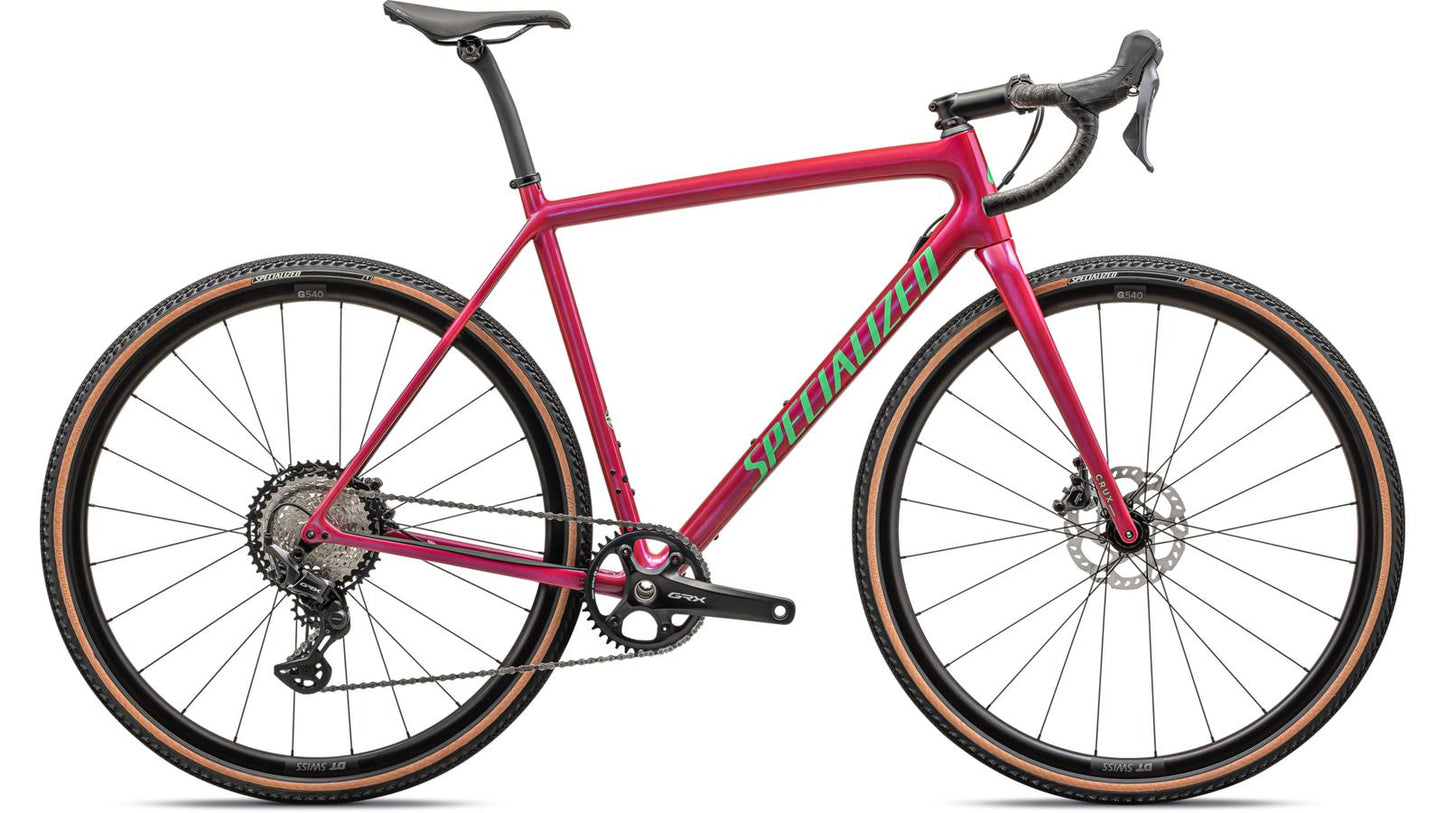

Vivid Pink / Electric Green

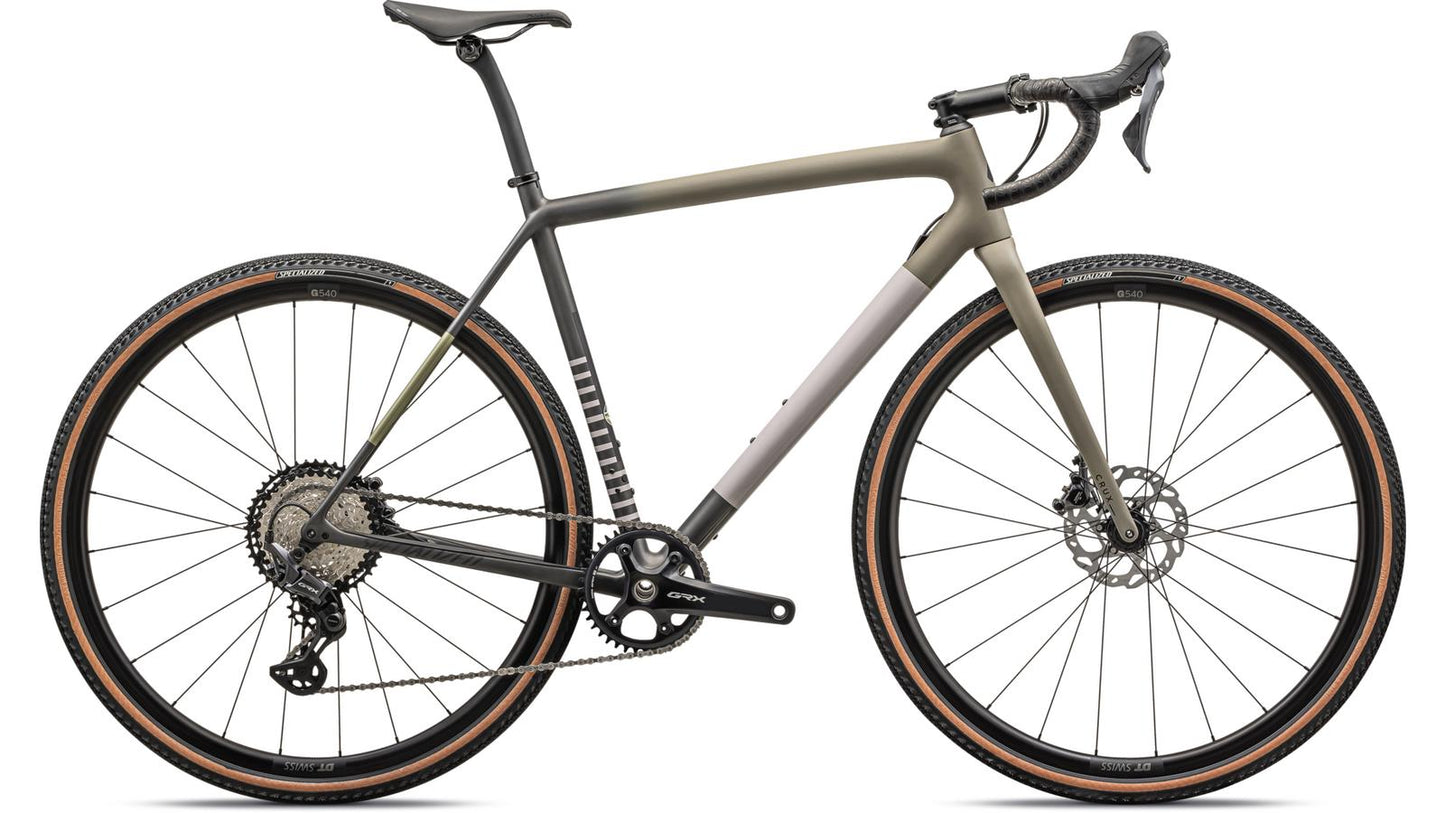

Taupe / Smoke / Midnight Shadow
×

Please find me:

2024 Crux Comp
View full details

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

×

2024 Crux Comp

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This Crux Comp comes spec'd with a reliable and smooth-shifting SRAM Rival 1 hydraulic disc groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in ‘cross.

TECHNICAL SPECIFICATIONS

FRAMESET

Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc

SUSPENSION

Fork

FACT Carbon, 12x100mm thru-axle, flat-mount disc

COCKPIT

Handlebars

Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare

Stem

3D-forged alloy, 31.8mm, 7-degree rise

Tape

Supacaz Super Sticky Kush

Saddle

Body Geometry Power Sport, steel rails

SeatPost

Roval Terra Carbon Seat Post, 20mm Offset

Seat Binder

Specialized Alloy, 30mm

BRAKES

Front Brake

Shimano GRX RX820

Rear Brake

Shimano GRX RX820

DRIVETRAIN

Shift Levers

Shimano GRX RX820, 1x12-speed

Front Derailleur

-

Rear Derailleur

Shimano GRX RX822-GS, 12-speed

Cassette

Shimano XT, 12-speed, 10-45t

Crankset

Shimano GRX RX820

Chainrings

40T

Bottom Bracket

Shimano Threaded BSA BB

Chain

Shimano XT M8100, 12-speed w/ quick link

WHEELS & TIRES

Front Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Front Tire

Pathfinder Pro 2BR, Tan Sidewall, 700x38

Rear Tire

Pathfinder Pro 2BR, Tan Sidewall, 700x38

Inner Tubes

700x28/38mm, 48mm Presta valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY

49 52 54 56 58 61
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Handlebar Width 380mm 400mm 420mm 420mm 440mm 440mm
Stem Length 70mm 80mm 90mm 100mm 110mm 110mm
Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
Seatpost Length 300mm 300mm 300mm 360mm 360mm 360mm
Stack 530mm 547mm 560mm 578mm 598mm 621mm
Reach 375mm 382mm 388mm 397mm 405mm 415mm
Head Tube Length 100mm 115mm 130mm 147mm 167mm 190mm
Head Tube Angle 70.5° 71.25° 71.5° 72° 72.25° 72.5°
BB Height 284mm 284mm 286mm 286mm 286mm 286mm
BB Drop 74mm 74mm 72mm 72mm 72mm 72mm
Trail 74mm 69mm 67mm 64mm 62mm 60mm
Fork Length, Full 401mm 401mm 401mm 401mm 401mm 401mm
Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm 50mm
Front Center 594mm 600mm 608mm 618mm 630mm 644mm
Chainstay Length 425mm 425mm 425mm 425mm 425mm 425mm
Wheelbase 1008mm 1014mm 1023mm 1033mm 1045mm 1059mm
Top Tube Length, Horizontal 512mm 539mm 549mm 568mm 582mm 599mm
Bike Standover Height 749mm 772mm 794mm 816mm 841mm 866mm
Seat Tube Length 466mm 496mm 521mm 546mm 576mm 606mm
Seat Tube Angle 75.5° 74° 74° 73.5° 73.5° 73.5°
