The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best...

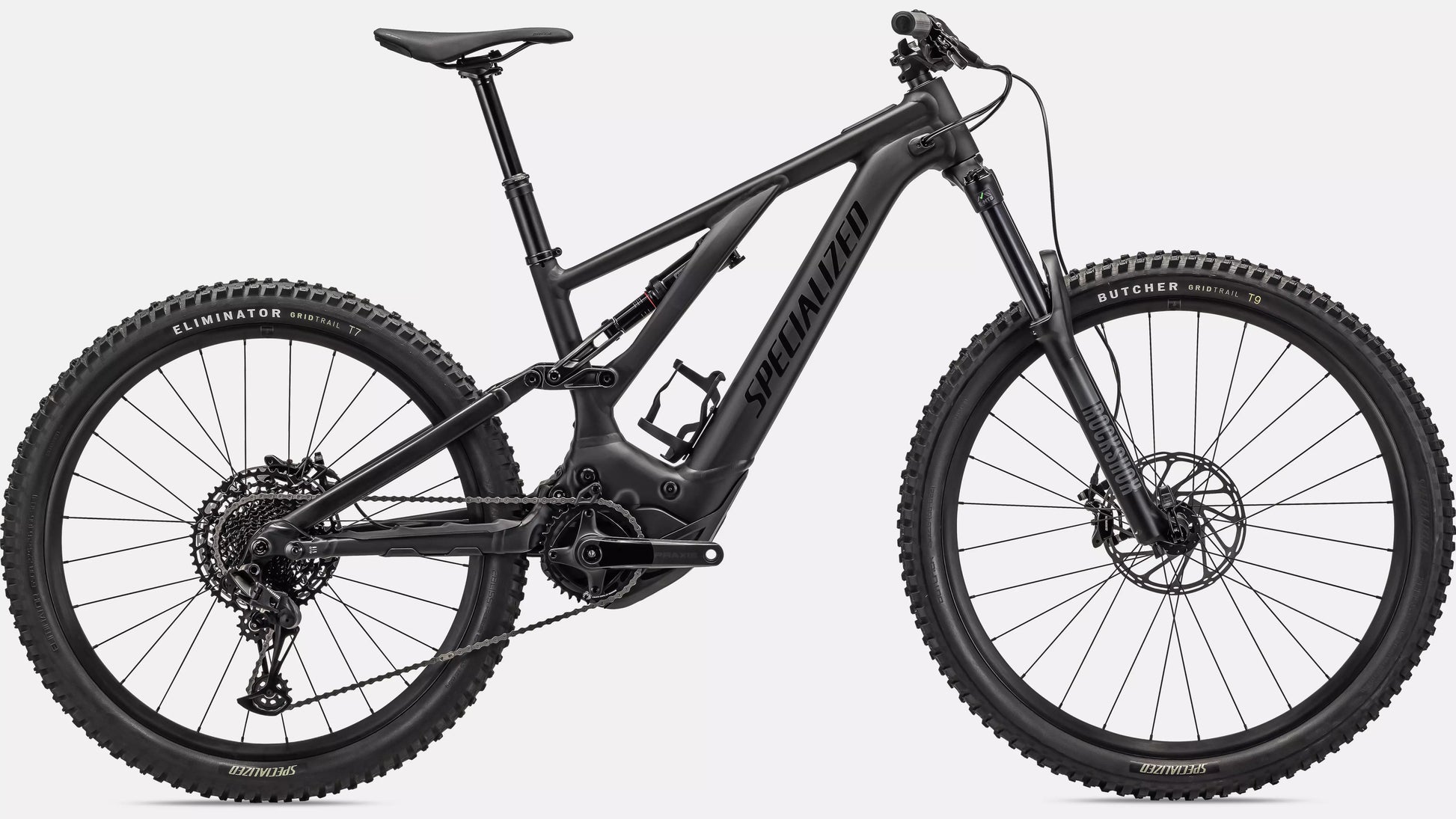

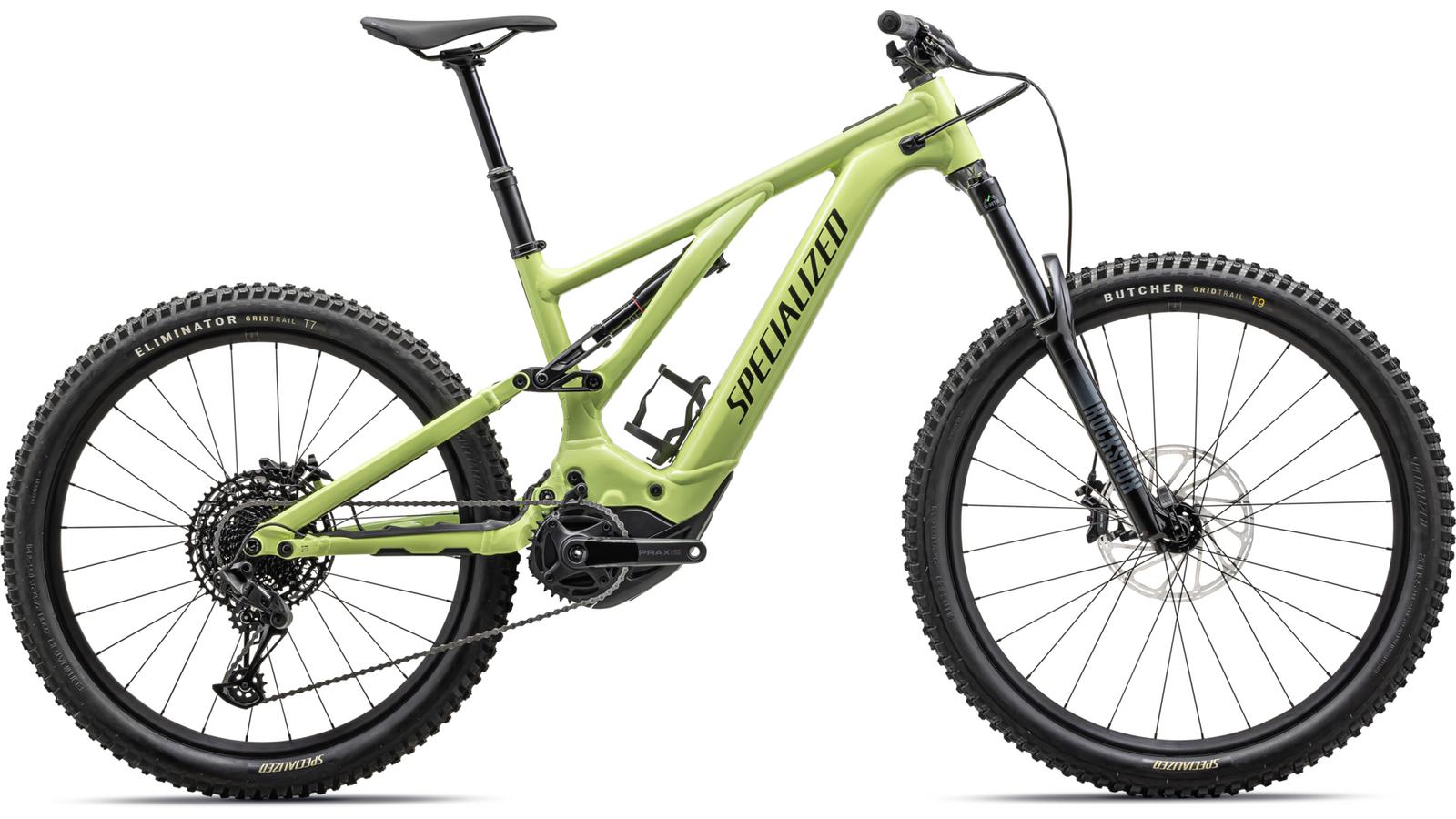

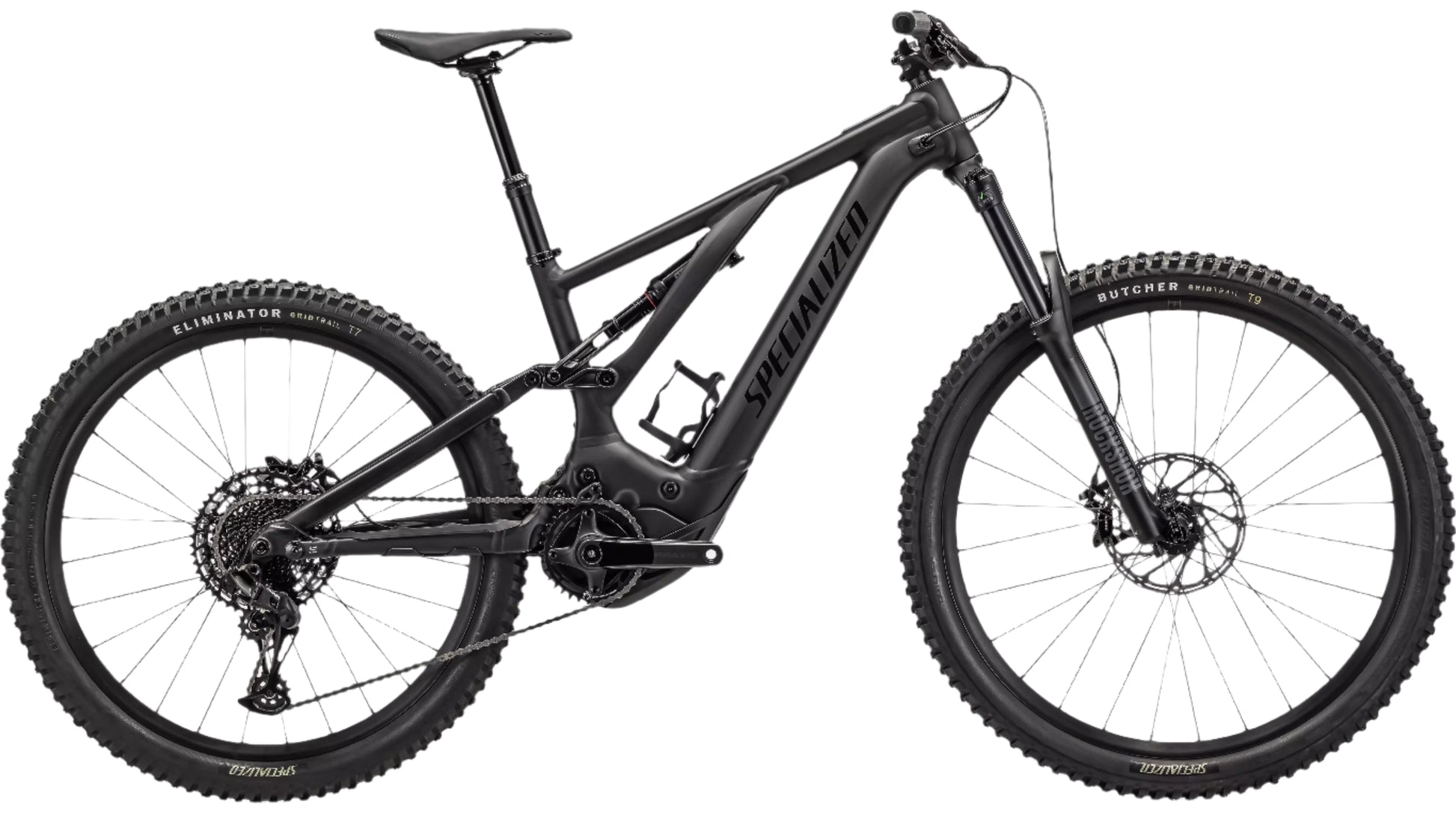

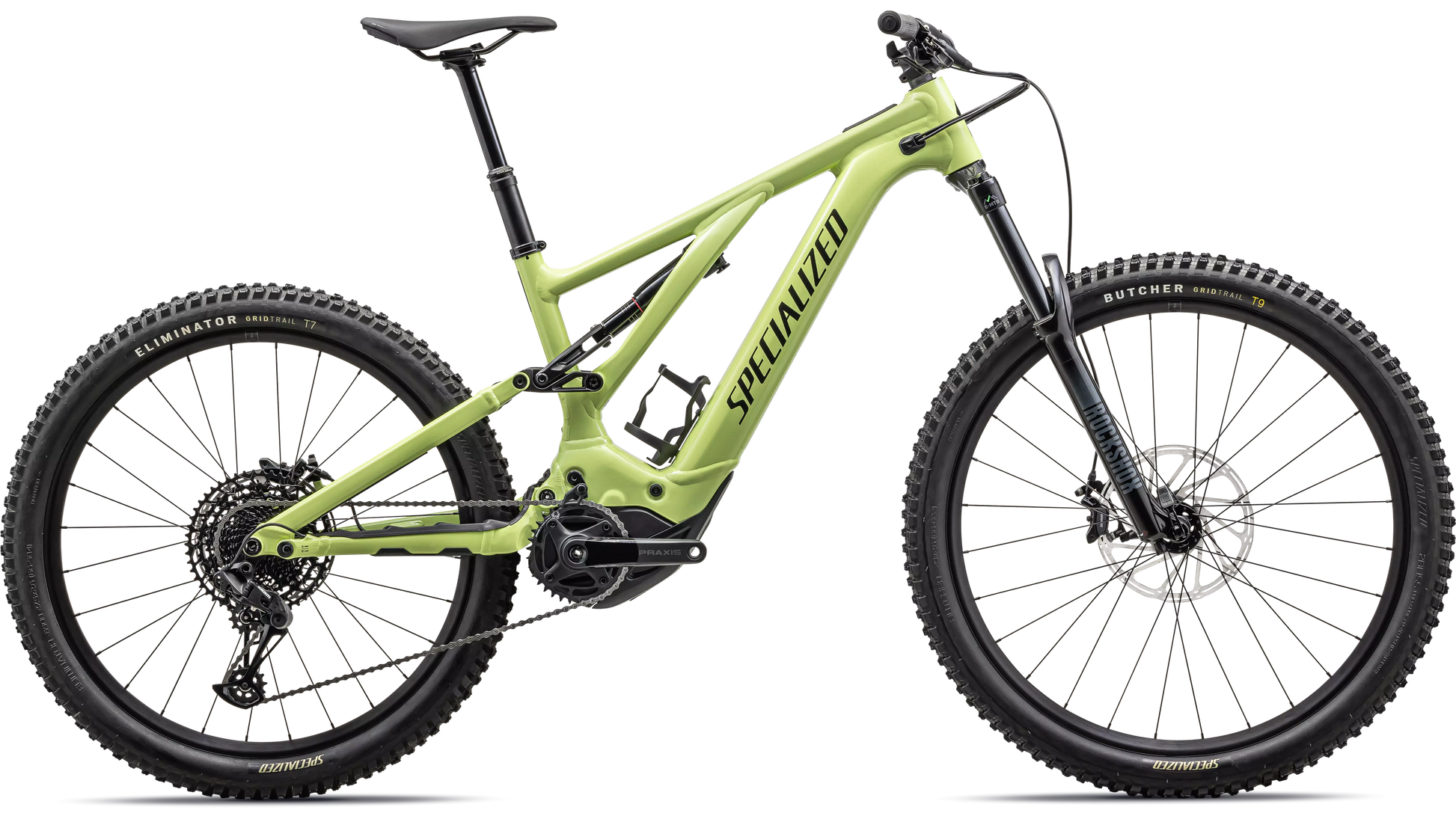

2023 Turbo Levo Alloy
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.
2023 Turbo Levo Alloy
SKU:
Share
Only 1 left in stock!
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best...
2023 Turbo Levo Alloy
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.
Collapsible content
TECHNICAL SPECIFICATIONS
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
BRAKES
Rear Brake
SRAM Guide RE, 200mm
Front Brake
SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
COCKPIT
Saddle
Body Geometry Bridge Saddle, steel rails
Grips
Specialized Trail Grips
Stem
Alloy Trail Stem, 35mm bar bore
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
WHEELS
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rear Wheel
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Wheel
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
SUSPENSION
Fork
RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
DRIVETRAIN
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Shift Levers
SRAM SX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34t, steel
Rear Derailleur
SRAM SX Eagle, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
ACCESSORIES
SWAT
-
Pedals
-
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 605mm | 617mm | 626mm | 635mm | 644mm | 653mm |
Reach | 412mm | 432mm | 452mm | 477mm | 502mm | 532mm |
Headtube Length | 105mm | 105mm | 115mm | 125mm | 135mm | 145mm |
Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
BB Height | 352mm | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 25mm | 27mm | 27mm | 27mm | 27mm | 27mm |
Trail | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
Fork Length (full) | 557mm | 567mm | 567mm | 567mm | 567mm | 567mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 738mm | 760mm | 784mm | 814mm | 843mm | 878mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1179mm | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
Bike Standover Height | 752mm | 776mm | 783mm | 787mm | 788mm | 790mm |
Seat Tube Length | 380mm | 390mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 78° | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
Max Seatpost Insertion | 210mm | 220mm | 240mm | 255mm | 275mm | 295mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
