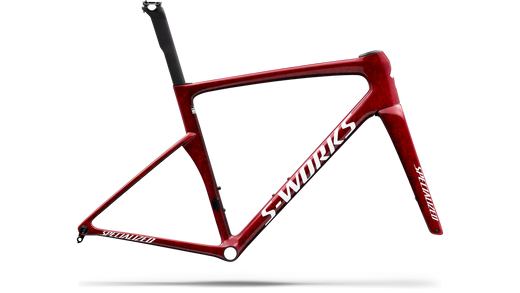

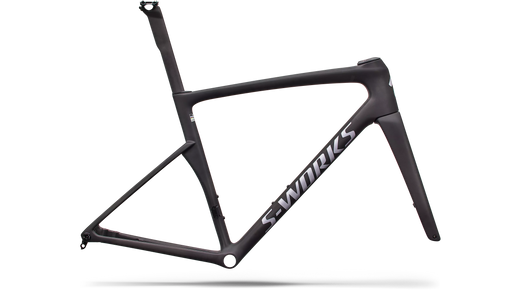

S-Works Tarmac SL9 Frameset

One Bike To Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

1 2

SPECIALIZED

S-Works Tarmac SL9 Frameset

FACT 12r Carbon

SKU:

R 120,000.00
R 120,000.00
Sale Sold out
Tax included.
Size
×

S-Works Tarmac SL9 Frameset

SKU Size Color STOCK (All Locations)
74927-0454 54 Gloss Carbon / Red to Blue Pearl / White 1 (all locations)
74927-1556 56 Rtp Raw Carbon / Gloss Amethyst Frost 1 (all locations)
Color
Gloss Carbon / Red to Blue Pearl / White
Rtp Raw Carbon / Gloss Amethyst Frost

Only 1 left in stock!

View full details

S-Works Tarmac SL9 Frameset

One Bike To Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

TECHNICAL SPECIFICATIONS

FRAMESET

Frame

S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

SUSPENSION

Fork

S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

COCKPIT

SeatPost

S-Works Rapide Post, FACT Carbon, 15mm offset

Seat Binder

Tarmac integrated wedge

WEIGHT

Weight

1.39 kg (3 lb, 1.0 oz)

Weight Size

56

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

GEOMETRY

44 49 52 54 56 58 61
Crank Length 165mm 165mm 170mm 170mm 172.5mm 172.5mm 175mm
Handlebar Width 380mm 380mm 400mm 420mm 400mm 420mm 420mm
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Saddle Width 155mm 155mm 155mm 143mm 143mm 143mm 143mm
Seatpost Length 300mm 300mm 300mm 380mm 380mm 380mm 380mm
Frame Stack 501mm 514mm 527mm 544mm 565mm 591mm 612mm
Frame Reach 366mm 375mm 380mm 384mm 395mm 402mm 408mm
Stack to Stem 509mm 522mm 535mm 552mm 573mm 599mm 620mm
Reach to Stem 363mm 372mm 377mm 381mm 393mm 400mm 406mm
Head Tube Length 99mm 109mm 120mm 137mm 157mm 184mm 204mm
Head Tube Angle 70.5° 71.75° 72.5° 73° 73.5° 73.5° 74°
BB Height 266mm 266mm 266mm 268mm 268mm 268mm 268mm
BB Drop 74mm 74mm 74mm 72mm 72mm 72mm 72mm
Trail 71mm 63mm 58mm 58mm 55mm 55mm 52mm
Fork Length, Full 370mm 370mm 370mm 370mm 370mm 370mm 370mm
Fork Rake/Offset 47mm 47mm 47mm 47mm 44mm 44mm 44mm
Front Center 567mm 570mm 572mm 582mm 587mm 602mm 609mm
Chainstay Length 410mm 410mm 410mm 410mm 410mm 410mm 410mm
Wheelbase 970mm 973mm 975mm 986mm 991mm 1006mm 1013mm
Top Tube Length, Horizontal 496mm 509mm 531mm 540mm 563mm 577mm 595mm
Bike Standover Height 722mm 734mm 745mm 767mm 785mm 807mm 833mm
Seat Tube Length 433mm 445mm 456mm 473mm 494mm 515mm 545mm
Seat Tube Angle 75.5° 75.5° 74° 74° 73.5° 73.5° 73°
