Yep, we just re-read the spec sheet and still can’t believe it either. The Rockhopper Elite is one helluva lot of bike.
Air-sprung fork? Let me introduce you to your new friend, Judy. Discerning when it comes to your drivetrain? You’ll find no fault—and no grade too steep—with...

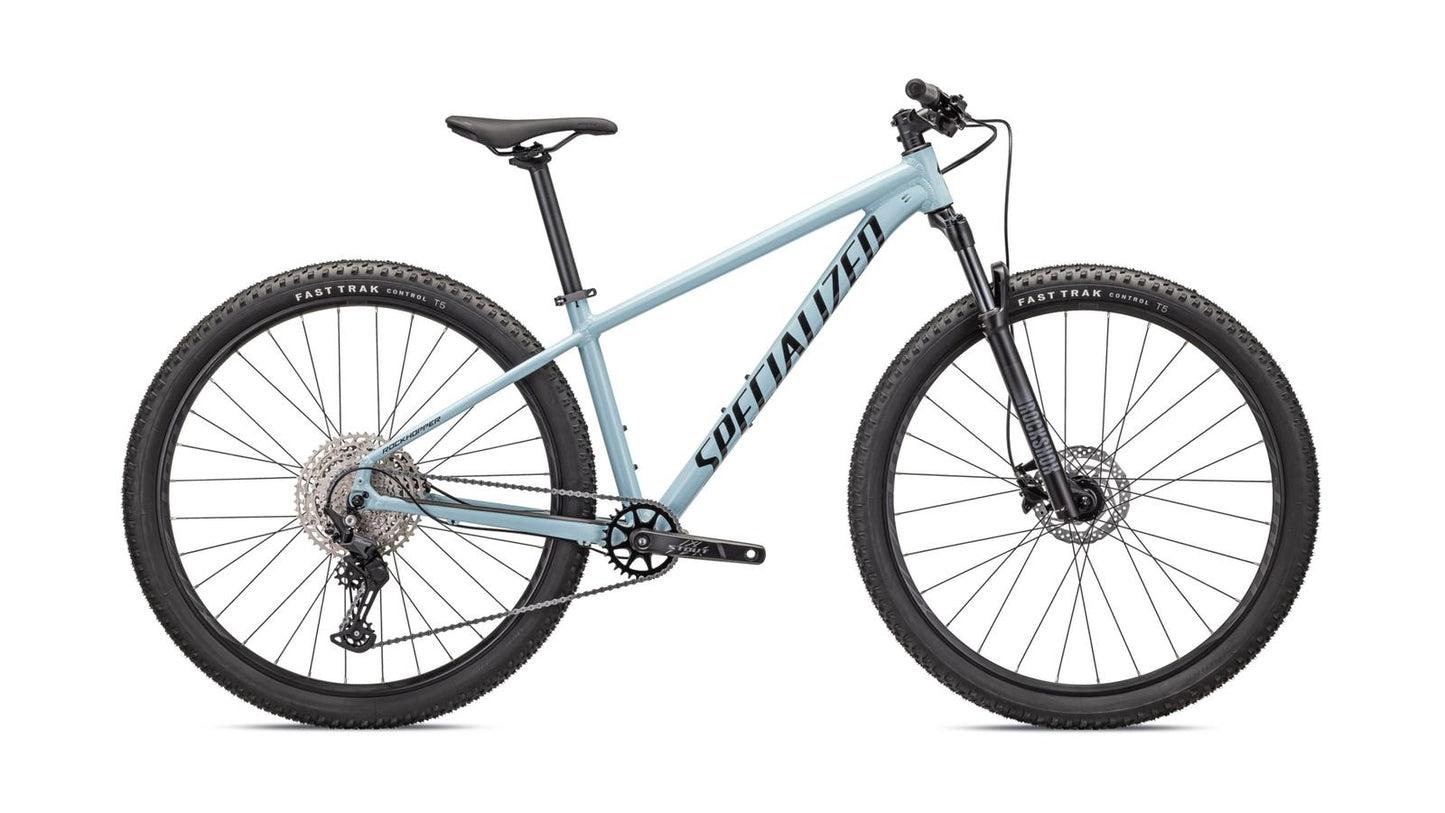

Rockhopper Elite 29
Yep, we just re-read the spec sheet and still can’t believe it either. The Rockhopper Elite is one helluva lot of bike.
Air-sprung fork? Let me introduce you to your new friend, Judy. Discerning when it comes to your drivetrain? You’ll find no fault—and no grade too steep—with a wide-range Shimano Deore 1x11 drivetrain. Why stop there? We didn’t, in order to allow you the pleasure of stopping yourself with Shimano’s eager-to-please and oh-so-capable MT200 hydraulic disc brakes.
Each is impressive in their own right, but the magic really lies in how they all come together into a Rockhopper that serves up singletrack with a nice big side of ‘ Whoah, so that’s what a real bike feels like.’
- A heart of gold, presented in our lightweight yet durable Premium A1 Aluminum, the Rockhopper’s butted aluminum frame features hydroformed top and downtubes in order to keep weight low and strength high, all while providing increased standover clearance, slick internal cable routing and dropper-post compatibility.
- With the goal of making sure that the Rockhopper offers both the best fit and best performance for every person, no matter their measure, we’ve paired each Rockhopper frame size with the optimal wheel size. The result is a Rockhopper to fit every rider and the assurance that every Rockhopper is rolling on the best-handling wheel for its frame size.
- The Rockshox Judy TK brings size-specific travel to the show in a performance that’s sure to impress, ensuring consistent geometry and handling, regardless of frame or wheel size.
- Shimano hydraulic disc brakes pack a mean bite but deliver their power with a refined, intuitive feel to make for a package that punches way above its pay grade.
- Keep things simple with a durable 1x11 Shimano Deore drivetrain that offers plenty of range along with a clutch-equipped rear derailleur that keeps your ride quite—and your chain on.
- Pair dead-reliable hubs from Formula with our 25-millimeter internal diameter, hookless Stout rims for a wheelset hat-trick: strong, light and durable.
Collapsible content
TECHNICAL SPECIFICATIONS
DRIVETRAIN
Chainrings
#N/ABottom Bracket
Square-tapered, 73mm, internal bearings, 122.5mm spindle
Shift Levers
Shimano Deore M5100, 11-speed
Chain
KMC X11EPT, 11-speed, anti-corrosion coating w/ reusable Missing Link™
Rear Derailleur
Shimano Deore M5100, SGS, 11-speed
Crankset
Stout 1x, forged alloy
Cassette
Shimano Deore, 11spd, 11-51t
COCKPIT
Saddle
Bridge Sport, Steel rails, 155/143mm
SeatPost
Alloy, 2-bolt clamp, 30.9mm
Handlebars
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized MTB Grip, lock-on
Stem
3D-forged alloy, 31.8mm, 7-degree rise
WHEELS
Spokes
Stainless, 14g
Rims
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Rear Hub
Formula DC-22, 6-Bolt freehub, disc, 135x9mm spacing, quick-release
Front Hub
Formula DC-20, 6-Bolt, disc, 100x9mm spacing, quick-release
Front Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Presta, 40mm valve
SUSPENSION
Rear Shock
#N/AFork
RockShox Judy, Solo Air, Turnkey damper, 46mm offset, QR, 80/90/100mm travel (size-specific), steel steerer
FRAMESET
Frame
Specialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible
Seat Binder
Alloy, quick release, 34.9
BRAKES
Front Brake
Shimano BR-MT200, hydraulic disc, 160mm
Rear Brake
Shimano BR-MT200, hydraulic disc, 160mm
ACCESSORIES
Pedals
SBC-54 Flat pedalWEIGHT
Weight
#N/AWeight Size
#N/A* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
S | M | L | XL | XXL | ||
---|---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm | |
Handlebar Width | 720mm | 740mm | 740mm | 740mm | 740mm | |
Stem Length | 40mm | 60mm | 60mm | 70mm | 70mm | |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm | |
Seatpost Length | 350mm | 400mm | 400mm | 400mm | 400mm | |
Stack | 607mm | 616mm | 626mm | 640mm | 654mm | |
Reach | 405mm | 425mm | 445mm | 465mm | 485mm | |
Head-Tube Length | 95mm | 95mm | 105mm | 120mm | 135mm | |
Head-Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° | |
B-B Height | 310mm | 310mm | 310mm | 310mm | 310mm | |
B-B Drop | 62mm | 62mm | 62mm | 62mm | 62mm | |
Trail | 97mm | 97mm | 97mm | 97mm | 97mm | |
Fork Length (full) | 505mm | 515mm | 515mm | 515mm | 515mm | |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm | |
Front-Center | 672mm | 696mm | 719mm | 745mm | 770mm | |
Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | |
Wheelbase | 1105mm | 1128mm | 1152mm | 1178mm | 1203mm | |
Top-Tube Length (horizontal) | 586mm | 608mm | 630mm | 654mm | 679mm | |
Bike Stand-Over Height | 732mm | 754mm | 781mm | 820mm | 853mm | |
Seat-Tube Length | 360mm | 400mm | 450mm | 500mm | 560mm | |
Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
