- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
- Choosing a selection results in a full page refresh.
- Opens in a new window.

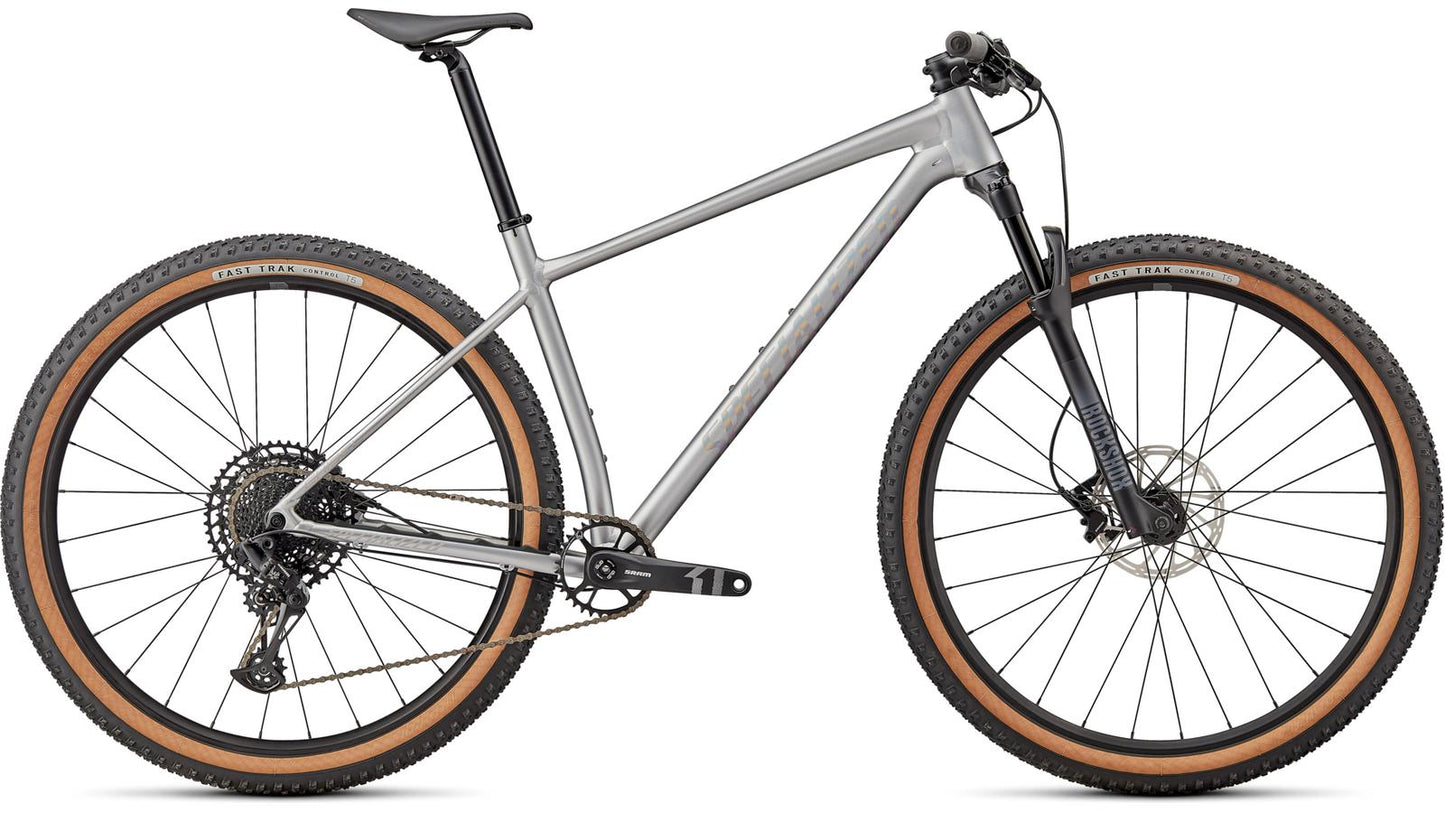

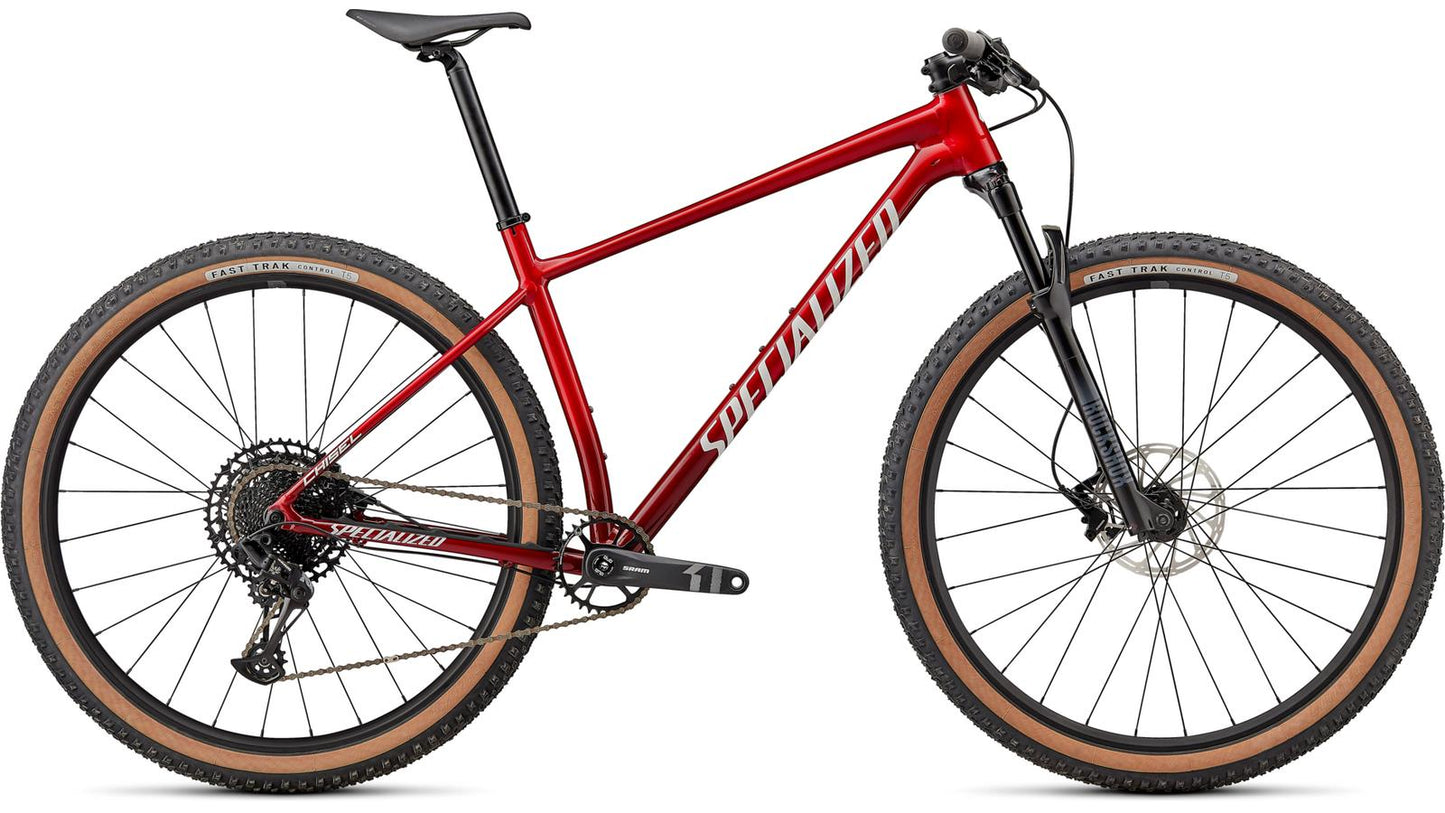

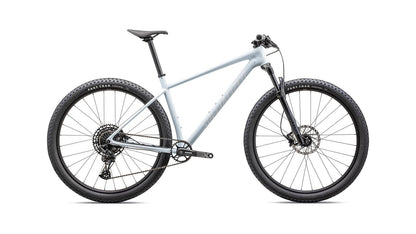

Chisel HT Comp
Chisel HT Comp
SKU:
Share
Please find me:
Chisel HT Comp
Chisel HT Comp
Collapsible content
TECHNICAL SPECIFICATIONS
DRIVETRAIN
Chainrings
#N/ABottom Bracket
SRAM DUB, BSA 73mm, Threaded
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Chain
SRAM, SX Eagle, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Crankset
SRAM X1000 Eagle, DUB, 170/175mm 32T
Cassette
SRAM NX Eagle, 12-speed, 11-50t
COCKPIT
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Specialized Alloy, Single Bolt, 30.9mm
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Grips
Specialized Trail Grips
Stem
3D-forged alloy, 31.8mm, 7-degree rise
WHEELS
Spokes
Stainless, 14g
Rims
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Standard 40mm PV 29x1.75-2.4
SUSPENSION
Rear Shock
#N/AFork
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
FRAMESET
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy, 34.9mm
BRAKES
Front Brake
SRAM Level T hydraulic disc, 2-Piston Caliper, Centerline Rotor, 160mm (XS/S/M), 180mm (L/XL)
Rear Brake
SRAM Level T, Post Mount, 160mm Centerline Rotor
ACCESSORIES
SWAT
#N/AWEIGHT
Weight
#N/AWeight Size
#N/A* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
GEOMETRY
XS | S | M | L | XL | ||
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 175mm | 175mm | 175mm | |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm | |
Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm | |
Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm | |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | |
Stack | 591mm | 605mm | 605mm | 619mm | 633mm | |
Reach | 385mm | 405mm | 430mm | 455mm | 480mm | |
Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm | |
Head Tube Angle | 68° | 68° | 68° | 68° | 68° | |
BB Height | 304mm | 309mm | 309mm | 309mm | 309mm | |
BB Drop | 68mm | 63mm | 63mm | 63mm | 63mm | |
Trail | 103mm | 103mm | 103mm | 103mm | 103mm | |
Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm | |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | |
Front Center | 647mm | 674mm | 699mm | 730mm | 760mm | |
Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm | |
Wheelbase | 1070mm | 1099mm | 1124mm | 1154mm | 1185mm | |
Top Tube Length, Horizontal | 555mm | 578mm | 603mm | 632mm | 661mm | |
Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm | |
Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm | |
Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
